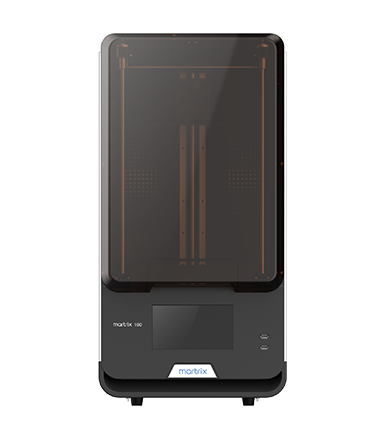

Martrix190

An advanced mSLA 3D printer designed for makers, professional studios, and research institutions.

Designed for reliable, high-performance printing, the Martrix190 features a 192 × 120 × 280 mm build volume and hot air heating for consistent resin performance in colder conditions. It also includes remote monitoring, air filtration, power calibration, door detection, and easy light source and screen replacement for efficient operation.

Built for Multiple Industries

TECHNICAL SPECIFICATIONS
Build Volume 192 × 120 × 280 mm
7.56 × 4.72 × 11.0 in
Printing Speed75 mm/h
Pixel Size50 μm
Layer Thickness0.025-0.15 mm
Exposure Screen8.9″ Monochrome 4k LCD
Resolution3840 x 2400
Light Output intensity – LCD Screen6.0 mW/cm²
Wavelength405 nm
SoftwareMartrix ONE
Resin VatReplaceable
Substrate thicknessUp to 30 mm****
Machine Dimensions355 × 370 × 705 mm
13.98 x 14.57 x 27.76 in
Machine Weight33 kg
