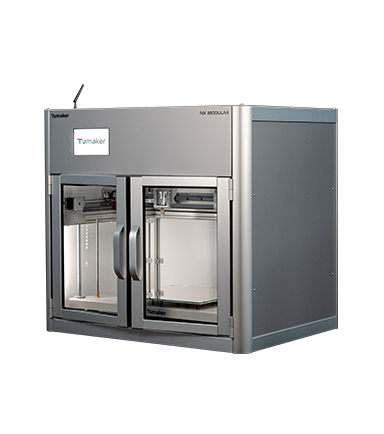

Tumaker NX 300 Modular

Tailored to Your Printing Needs

The Tumaker NX 300 Modular 3D printer uses an interchangeable head system that supports one or two pellet or filament extruders for fully adaptable production. With a dual-head structure, users can configure the system with specialist guidance to suit each project.

Featuring a 300 × 300 × 300 × 250 mm print volume and modular architecture, the Tumaker NX 300 supports a wide range of advanced applications, from prototypes to end-use parts. Its enclosed design and integrated filtration system provide safety, control, and efficiency.

3D Printing Beyond Standard Materials

Tumaker’s pellet extrusion technology enables direct use of polymer pellets in the printer, eliminating the need for filament production. This reduces costs, expands material options—including recycled polymers—and improves sustainability while increasing print speed and enabling complex geometries for applications in research, medicine, industry, and product design.

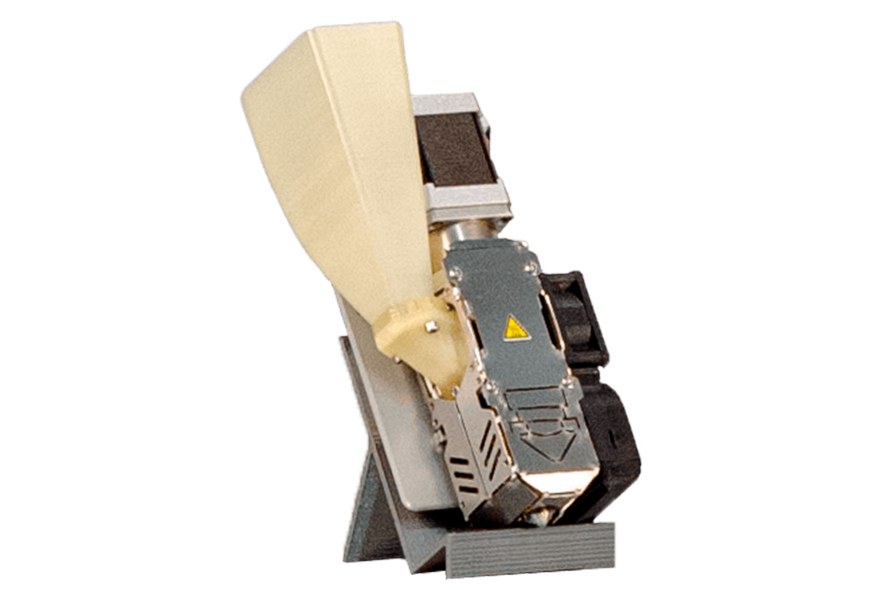

Pellet Extruder Key Features

Compatible with the Pellet Feeder
Recommended pellet size: from 3 to 5 mm in diameter
Maximum head temperature: 300 ºC
Adjustable nozzles: 0.4 mm | 0.6 mm | 0.8 mm (included) | 2.0 mm | 4.0 mm | 5.0 mm

3D Printing Beyond Standard Materials

Pellet Extruder Key Features

Compatible with the Pellet Feeder
Recommended pellet size: from 3 to 5 mm in diameter
Maximum head temperature: 300 ºC
Adjustable nozzles: 0.4 mm | 0.6 mm | 0.8 mm (included) | 2.0 mm | 4.0 mm | 5.0 mm

Filament Extruder for Precision 3D Printing

Engineered for precision and flexibility, the Tumaker Direct Drive HR filament extruder simplifies 3D printing with easy-to-handle materials and a broad range of material properties. When paired with NX 300 printers, it ensures consistent, reliable results across applications.

Direct Drive HR Filament Head Key Features

Printing with spools up to 6 kg
Optimised filaments: ABS, ASA, NYLON, PET-G, PLA, PP, TPU Hardness, TPU…
Maximum head temperature: 300 ºC
Adjustable nozzles: 0.15 mm | 0.25 mm | 0.4 mm (included) | 0.6 mm | 0.8 mm

Filament Extruder for Precision 3D Printing

Direct Drive HR Filament Head Key Features

Printing with spools up to 6 kg
Optimised filaments: ABS, ASA, NYLON, PET-G, PLA, PP, TPU Hardness, TPU…
Maximum head temperature: 300 ºC
Adjustable nozzles: 0.15 mm | 0.25 mm | 0.4 mm (included) | 0.6 mm | 0.8 mm

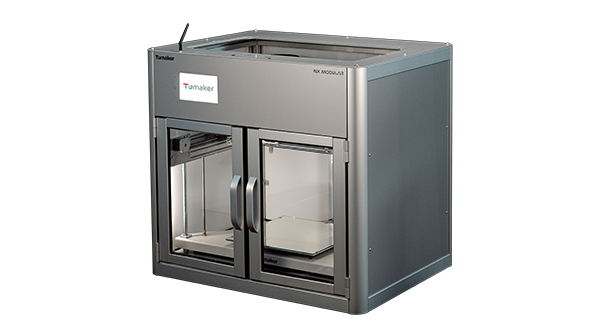

User-Friendly Professional 3D Printer

With a 300 × 300 × 250 mm build volume, the Tumaker NX 300 Modular enables high-precision printing of medium-sized parts for prototyping and small-scale production. Its interchangeable printhead, robust frame, and stable structure ensure consistent, reliable results across applications.

It offers Wi-Fi, Ethernet, and Micro SD connectivity for easy file transfer and remote control, plus a closed, filtered design for a safer, cleaner workspace. Operating at just 44 dB, it features a 7” touchscreen for intuitive control and includes Simplify3D, with support for Cura, SuperSlicer, STL, OBJ, and G-code files.

Professional-and-User-Friendly-3D-Printer

User-Friendly Professional 3D Printer

Automatic Pellet Feeder

The Automatic Pellet Feeder directly supplies the head hopper, eliminating the need for manual extruder loading and freeing the user from routine material handling. By combining pellet-based additive manufacturing with automated feeding, it creates a unique, highly efficient 3D printing system.

Automatic Pellet Feeder

CHARACTERISTICS
Specification	NX 300 Modular	NX 300 Modular (Pellet)	NX 300 Modular Dual	NX 300 Modular Dual (Pellet – Direct Drive HR)	NX 300 Modular Dual (Pellet – Pellet)
Number of Extruders	1 (Direct Drive HR)	1 (Pellets)	2 (Direct Drive HR – Direct Drive HR)	2 (Direct Drive HR – Pellets)	2 (Pellets – Pellets)
Compatible Nozzles	0.15 mm, 0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm	0.4 mm, 0.6 mm, 0.8 mm, 2.0 mm, 4.0 mm, 5.0 mm	0.15 mm, 0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm	Filament: 0.15–0.8 mm Pellet: 0.4–5.0 mm	0.4 mm, 0.6 mm, 0.8 mm, 2.0 mm, 4.0 mm, 5.0 mm
Included Nozzles	0.4 mm	0.8 mm	0.4 mm (2 pcs)	Filament: 0.4 mm Pellet: 0.8 mm	0.8 mm (2 pcs)
Materials	ABS, ASA, NYLON, PET-G, PLA, PP, TPU	Pellets (Circular 3-5 mm)	ABS, ASA, NYLON, PET-G, PLA, PP, TPU	Pellets and filaments	Pellets (Circular 3-5 mm)
Print Volume	300 x 300 x 250 mm
Printer Weight	56 kg
Printer Dimensions	840 x 635 x 805 mm
Heated Bed Temperature	Up to 100 °C
Head Temperature	Up to 300 °C
Calibration	Automatic
Structure	Closed with filters
Connectivity	Wi-Fi, Ethernet, Micro SD
Noise Emission	44 dB (40 dB with door closed)
Display	7" colour touch screen
Compatible Software	MacOS, Windows, Linux
Power	120W, 600W, 1350W
Compatible Slicing Software	Simplify 3D, CURA, SuperSlicer
File Format	STL, OBJ, Gcode
Warranty	1 year
Package Weight	114 kg
Package Dimensions	953 x 800 x 957 mm
