TORMACH XS Tech

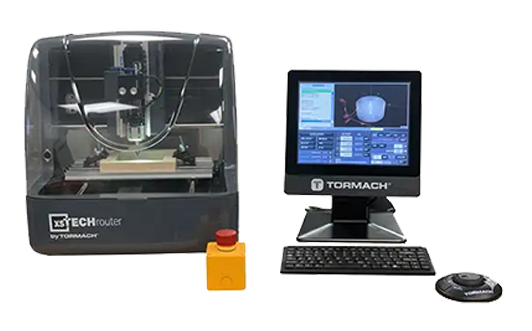

The xsTECH Router is a desktop CNC ready to use out of the box. It’s small enough to fit in a craft room or makerspace, and it’s capable enough to cuts all manners of plastics, woods, and even aluminum.

TECHNICAL SPECIFICATIONS

Travels X-Axis 8.6 in. (220 mm)
Y-Axis 6.3 in. (160 mm)
Z-Axis 2.4 in. (61 mm)
Spindle Spindle Power 120 W (0.12 kW) Brushless DC
Maximum Speed 20,000 RPM
Spindle Taper ER11
Noise Level (No Load Operation) <66 db(A)
Repositioning Accuracy 0.004 in (0.10 mm)
Power Power Required Single-Phase, 50-60 Hz 120 Vac (USA/Canada, PN 39177) 230 Vac (International, PN 50614)
Machine Specifications Table Size 12.6 in. × 5.9 in. (320 mm × 150 mm)
Typical System Footprint 15.4 in. × 15.7 in. (391 mm × 399 mm)
Overall System Height 16.7 in. (424 mm)
Typical System Weight 33 lb (14.9 kg)
Maximum Table Load Weight 6.6 lb (3 kg)
Highlighted Features Fully-Enclosed with Safety Door Switch
Tormach PathPilot® Control System with Keyboard, Mouse, Touchscreen, and Tormach Jog Shuttle
ER11 Collet Uses Popular 1/8 inch, 1/4 inch, 4 mm, or 6 mm Tool Shanks
Starter Tooling Set with WER Collets and End Mills
Integrated Tool Setter
Clamp Kit
