GRINDING WHEELS ACCESSORIES
Grinding Wheel Balancing Stand

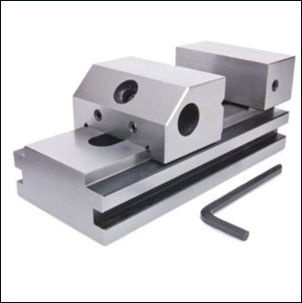

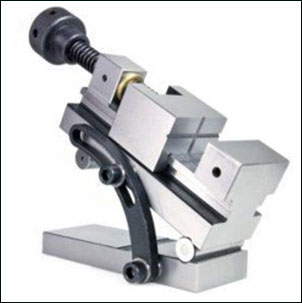

Toolmaker Vises

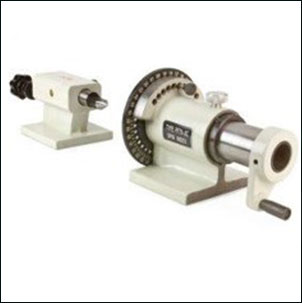

5C Indexer Fixture w/ Tailstock

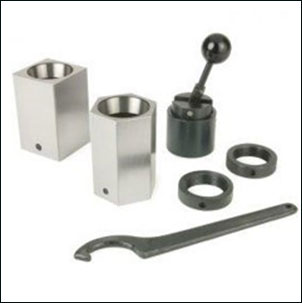

5C Collet Block Set

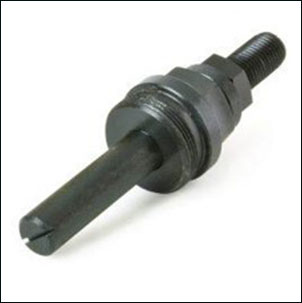

5C Adjustable Collet Stop
GRINDING WHEELS ACCESSORIES
Grinding Wheel Balancing Stand
Toolmaker Vises
5C Indexer Fixture w/ Tailstock
5C Collet Block Set
5C Adjustable Collet Stop
WORKHOLDING & ACCESSORIES
Grinding Wheel Balancing Stand

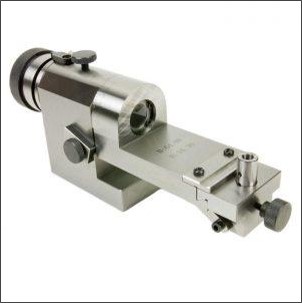

Optical Grinding Wheel Dresser

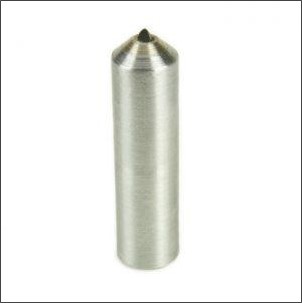

Radius Diamond Pin (12 mm)

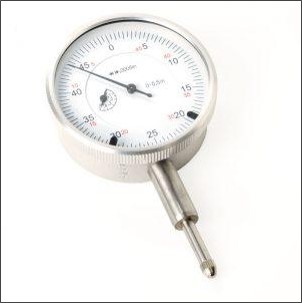

0.0005 Dial Indicator

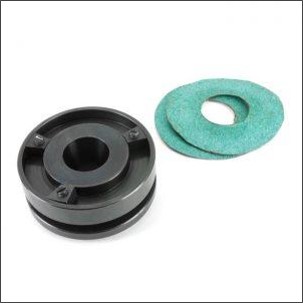

Grinding Wheel Hub

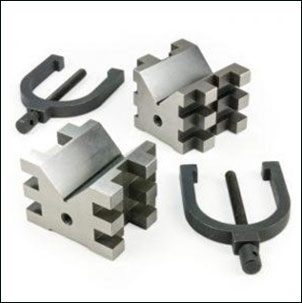

V-Block and Clamp Set

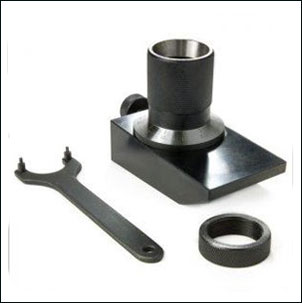

End Mill Grinding Fixture

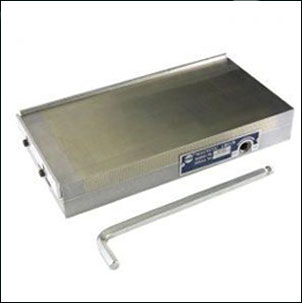

Magnetic Chuck ( Fine Pole )

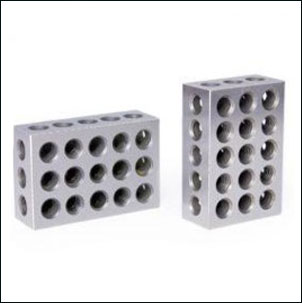

1-2-3 Block Set
WORKHOLDING & ACCESSORIES
Grinding Wheel Balancing Stand
Optical Grinding Wheel Dresser
Radius Diamond Pin (12 mm)
0.0005 Dial Indicator
Grinding Wheel Hub
V-Block and Clamp Set
End Mill Grinding Fixture
Magnetic Chuck ( Fine Pole )
1-2-3 Block Set
TECHNICAL SPECIFICATIONS
| Spindle | Spindle Motor | Industrial-Grade 3/4 hp (.559 kW) TEFC Single-Phase Induction Motor | |
| Wheel Size | 7 in. × 1-1/4 in. ×1/2 in. (178 mm × 32 mm × 13 mm) | ||
| Wheel Speed | 3450 RPM (@ 60 Hz), providing 6300 SFM (with 7 in. wheel) (1925 SMM (with 178 mm wheel)) | ||
| Power | Power Required | 115 Vac single-phase, 15A breaker | |
| Machine Specifications | Table Size | 6 in. × 12 in. (152 mm × 305 mm) | |
| Longitudinal (X) Max Travel | 13.75 in. (349 mm) | ||
| Crossfeed (Y) Max Travel | 7.25 in. (184 mm) | ||
| Vertical (Z) Max Travel | 8 in. (203 mm) | ||
| Space Required for Full Range of Motion | 51 in.W × 66 in.H × 30 in.D (1295 mm W × 1676 mm H × 762 mm D) | ||
| Machine Weight | 400 lbs. (181 kg) | ||
| Frame | Frame and Table | Cast iron frame and table, with hand-scraped hydrodynamic dovetail slideways and tapered adjustment gibs | |
| Way Surfaces | Low-friction PTFE-filled, Acetyl-bonded sliding surface. Similar to Rulon® and Turcite®. | ||
| Features | 2-Axis Automatic | ||
| 4 Pattern Control | |||
| Longitudinal (X) and Crossfeed (Y) Speed Control | |||
| Optional Accessories | Belt Sander Attachment | ||
| Automatic Oiler | |||
| Motion | Max Feed Rate | 0-45 FPM (0-13.7 MPM) (X) 0-24 FPM (0-7.3 MPM) (Y) |
|
| Axis Drivers (X, Y) | High-Performance Stepper Motors with Leadshine® Microstepping | ||
| Locomotion | Longitudinal (X) Rack and Pinion (automatic) |
||
| Crossfeed (Y) Leadscrew w/ anti-backlash nut (manual or automatic) |
|||
| Vertical (Z) Leadscrew w/ anti-backlash nut (manual) |
