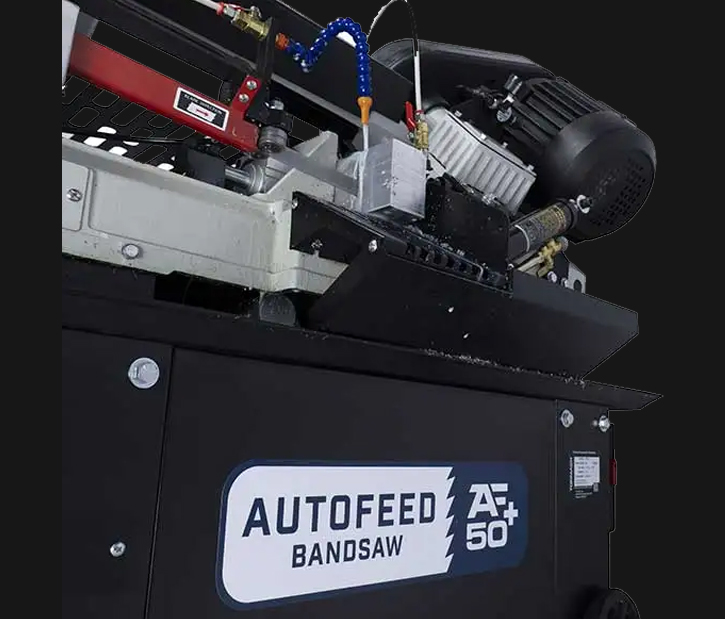

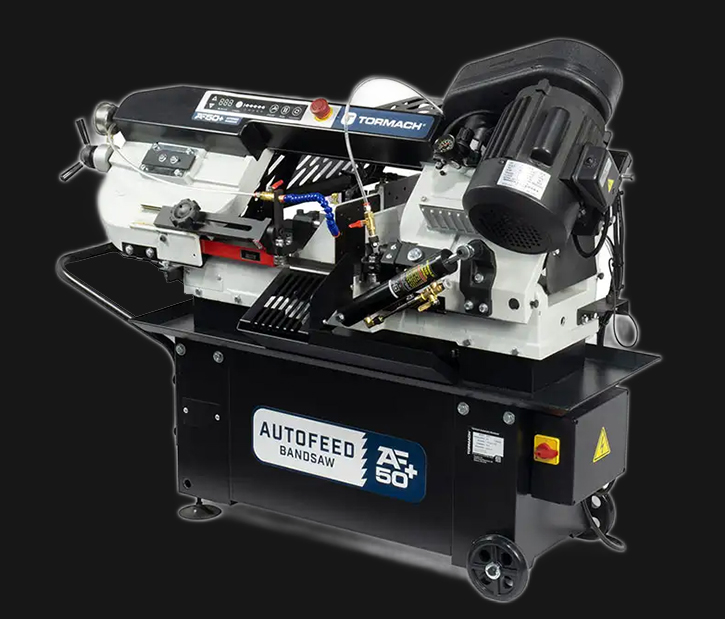

TORMACH AF50

Automate cutting tasks with an easy-to-use bandsaw, allowing you to stay productive while managing other production operations.

Cut everything from delicate thin-walled tubing to 7-inch steel round bars with precise, consistent results every time.

Affordable Bandsaw, Professional Performance

The AF50 combines affordable automation with efficient cutting, reducing labor requirements and helping businesses lower material costs, especially when replacing pre-cut stock.

Affordable Bandsaw, Professional Performance

The AF50 combines affordable automation with efficient cutting, reducing labor requirements and helping businesses lower material costs, especially when replacing pre-cut stock.

Let the AF50 Work for You

Upgrade from manual or semi-automatic cutting with the AF50 automatic feed bandsaw. Its intuitive controls and programmable operation automate repetitive cutting tasks, allowing you to focus on higher-value work while it processes uncut stock. A pneumatic clamping system securely handles everything from delicate tubing to large steel bars, while single-phase power makes installation simple and convenient.

Let the AF50 Work for You

Upgrade from manual or semi-automatic cutting with the AF50 automatic feed bandsaw. Its intuitive controls and programmable operation automate repetitive cutting tasks, allowing you to focus on higher-value work while it processes uncut stock. A pneumatic clamping system securely handles everything from delicate tubing to large steel bars, while single-phase power makes installation simple and convenient.

Smarter Cutting with the AF50

The AF50 Autofeed Bandsaw combines a compact footprint with powerful, automated cutting performance. Operating on single-phase power and 90–120 PSI compressed air, it cuts materials ranging from 0.157 in. to 7 in. round or 6 × 8 in. rectangular profiles. Adjustable blade speeds, clamping pressure, feed rate, and a 2.6-gallon recirculating coolant system ensure precise, efficient cutting, while multi-stroke programming extends cutting capacity for larger workpieces.

Smarter Cutting with the AF50

The AF50 Autofeed Bandsaw combines a compact footprint with powerful, automated cutting performance. Operating on single-phase power and 90–120 PSI compressed air, it cuts materials ranging from 0.157 in. to 7 in. round or 6 × 8 in. rectangular profiles. Adjustable blade speeds, clamping pressure, feed rate, and a 2.6-gallon recirculating coolant system ensure precise, efficient cutting, while multi-stroke programming extends cutting capacity for larger workpieces.

TECHNICAL SPECIFICATIONS
CapacityCut Lengths: 0.157 in. to 50 in.(4 mm to 1270 mm)
Max material weight: 250lbs
Material Remnant Length: 10 in.
Maximum Parts per Program: 999
Rectangular Stock: 6 in. tall × 8 in. wide(152 mm tall × 203 mm wide)
Round Stock: 7 in. (178 mm) diameter
BladeMotor Power: 1 hp (3/4 kW)
Blade Speeds: 60 Hz: 90, 134, 195, 255 ft/min(27, 41, 59, 78 m/min)
50 Hz: 70, 110, 160, 210 ft/min(22, 34, 49, 64 m/min)
Blade Length 93 in. (2362 mm)
Blade Width 0.75 in. (19 mm)
Blade Thickness 0.035 in. (0.9 mm)
Machine RequirementsMinimum Width: 60 in. (1.53 m)
Minimum Depth: 36 in. (0.91 m) plus the length of stock
Minimum Height: 67 in. (1.71 m)
Power: Single-Phase 115 Vac,15A breaker, Meets Canadian and U.S.safety/electrical standards
Compressed Air Source: 90 psi to 120 psi(620 kPa to 827 kPa)
FeaturesPneumatic Clamping System
Hydraulic Feed Control
Integrated Coolant System (2.65 gal (10 L) capacity)
Movable
Blade tension indicator for fast and easy tension adjustment after a blade change
Warranty1 Year Warranty against defects in material and workmanship.
Extended Warranty available.
