TORMACH 770MX

The 770MX combines a compact footprint with higher spindle power, faster rapids, and enhanced performance.

Equipped with three servo motors, a rigid tapping encoder, and a BT30 spindle, the 770MX delivers premium features at no extra cost. Its higher speeds shorten machining time, while the spindle provides confident performance in aluminum, titanium, hardened steels, and alloys.

Built on the latest CNC technology for outstanding performance and value.

The 770MX CNC mill is an affordable, easy-to-use solution for entrepreneurs, small businesses, and hobbyists. Thoughtfully designed with user-friendly features, it delivers a smooth and enjoyable machining experience.

Compact Size. Exceptional Performance.

The upgraded 770MX takes our already proven platform, increases the spindle power, and upgrades the electronics to our latest, EtherCAT-based controls and servos.

2 HP, 10K RPM Spindle: Achieve excellent surface finishes and tight tolerances on small components. Perfect for aluminum, plastics, composites, and steels.

EtherCAT control platform: For precise motion and integrated feedback.

Compact, Capable Footprint: Serious machining power in a machine that fits into more shops and R&D labs.

Compact Size. Exceptional Performance.

The upgraded 770MX builds on a proven platform with increased spindle power and the latest EtherCAT-based controls and servo system for enhanced performance and reliability.

2 HP, 10K RPM Spindle: Delivers excellent surface finishes and tight tolerances when machining aluminum, plastics, composites, steels, and other materials.

EtherCAT Control Platform: Provides precise motion control with fast, integrated feedback for improved accuracy and performance.

Compact, High-Performance Footprint: Packs serious machining capability into a space-saving machine ideal for workshops, R&D labs, and educational environments.

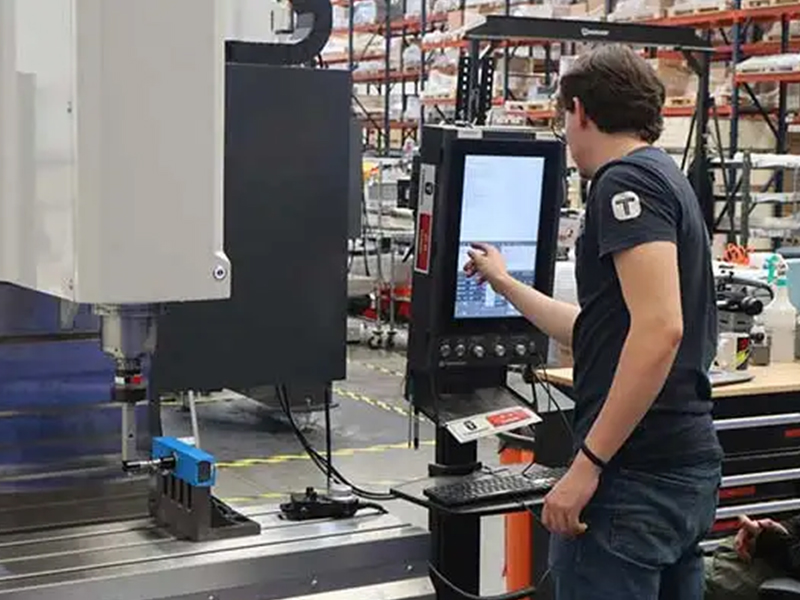

Proudly Built by Employee-Owners

Tormach is a 100% employee-owned company, and that ownership is built into every machine we make. The 770MX mill is designed and manufactured by employee-owners in the USA, Canada, and Mexico, delivering capable, affordable, and easy-to-use machine tools.

North American manufacturing improves responsiveness and quality control while complementing our global supply chain. Every Tormach machine is supported by the same engineering standards, customer service, and PathPilot® control system.

Proudly Built by Employee-Owners

Tormach is a 100% employee-owned company, and that ownership is built into every machine we make. The 770MX mill is designed and manufactured by employee-owners in the USA, Canada, and Mexico, delivering capable, affordable, and easy-to-use machine tools.

North American manufacturing improves responsiveness and quality control while complementing our global supply chain. Every Tormach machine is supported by the same engineering standards, customer service, and PathPilot® control system.

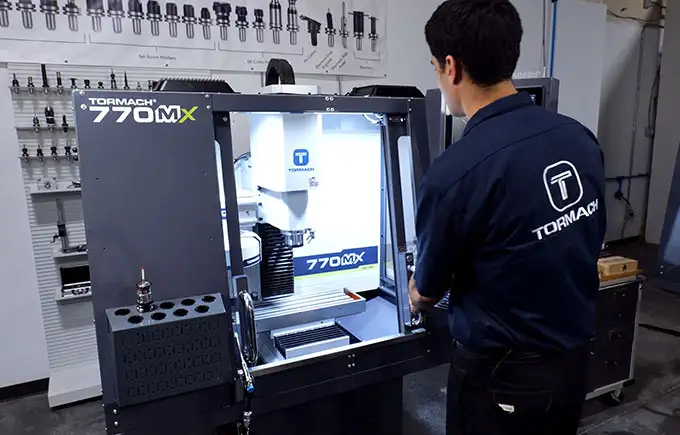

High-Speed Performance, Compact Footprint

Designed for high-speed precision machining, the 770MX features a 2 HP, 10,000 RPM spindle that delivers industrial-level performance in a compact machine. It produces smooth finishes and efficient cutting with smaller tools, making it ideal for prototypes and precision components.

Its compact design and affordable price make it a practical choice for makers, educators, and small businesses seeking professional-grade CNC performance.

High-Speed Performance, Compact Footprint

Designed for high-speed precision machining, the 770MX features a 2 HP, 10,000 RPM spindle that delivers industrial-level performance in a compact machine. It produces smooth finishes and efficient cutting with smaller tools, making it ideal for prototypes and precision components.

Its compact design and affordable price make it a practical choice for makers, educators, and small businesses seeking professional-grade CNC performance.

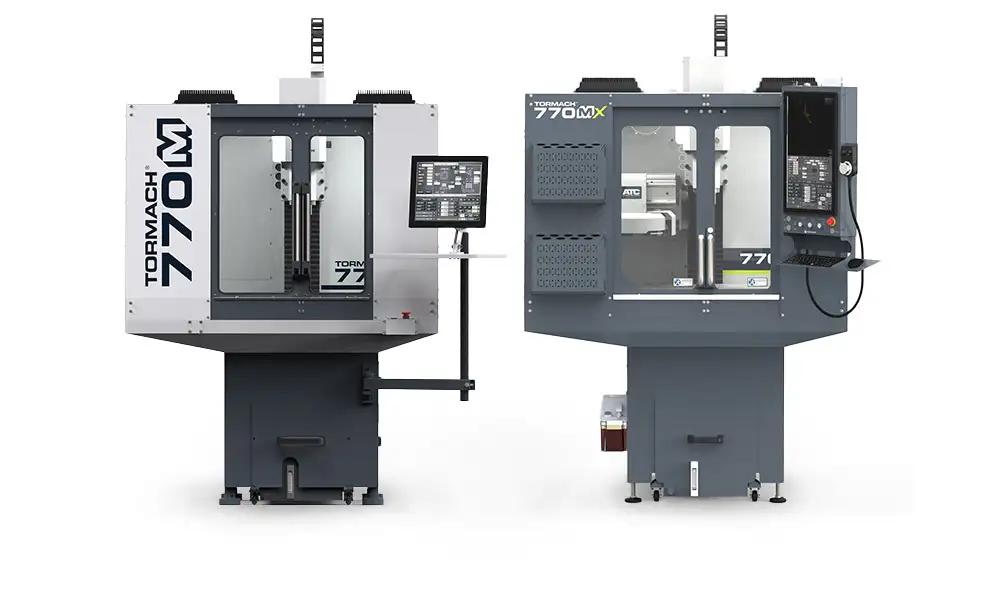

770M vs. 770MX: What's the Difference?

The key differences between the Tormach 770M and 770MX lie in their electronics, spindle taper, and axis drive systems.

While both machines share the same proven platform, the 770MX delivers more power, speed, and advanced features. It runs on 240V, while the 770M operates on 120V. The 770M features stepper motors, an R8 spindle for TTS tooling, and optional configurations for an enclosure, chip tray, and stand.

The 770MX upgrades to servo-driven axes, a BT30 spindle, and an encoded spindle for rigid tapping. It also includes faster rapids, a large touchscreen operator console, and a full enclosure as standard.

770M vs. 770MX: What's the Difference?

The key differences between the Tormach 770M and 770MX lie in their electronics, spindle taper, and axis drive systems.

While both machines share the same proven platform, the 770MX delivers more power, speed, and advanced features. It runs on 240V, while the 770M operates on 120V. The 770M features stepper motors, an R8 spindle for TTS tooling, and optional configurations for an enclosure, chip tray, and stand.

The 770MX upgrades to servo-driven axes, a BT30 spindle, and an encoded spindle for rigid tapping. It also includes faster rapids, a large touchscreen operator console, and a full enclosure as standard.

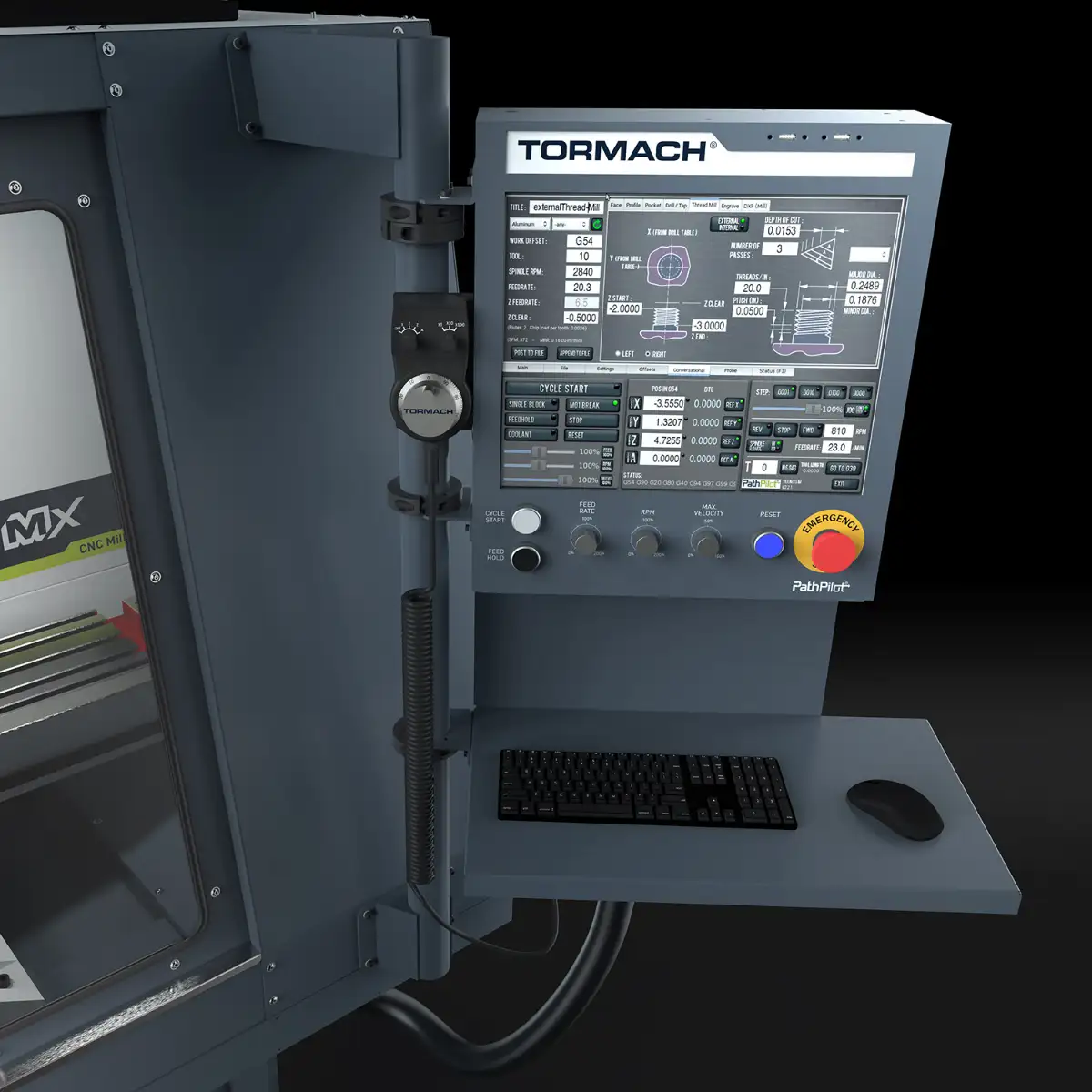

Intuitive PathPilot® CNC Control Software

PathPilot® is Tormach’s exclusive CNC control system, included with every machine at no extra cost. Its intuitive conversational programming makes it easy to create and edit programs on the fly, while the free PathPilot HUB lets you learn and test PathPilot online.

Intuitive PathPilot® CNC Control Software

PathPilot® is Tormach’s exclusive CNC control system, included with every machine at no extra cost. Its intuitive conversational programming makes it easy to create and edit programs on the fly, while the free PathPilot HUB lets you learn and test PathPilot online.

770MX Installation Walkthrough

Tormach machines are designed to be easy to use and support, without requiring on-site installation by a company technician. Guided by our mission to make CNC more accessible, we focus on cost-conscious design and ownership.

Many customers choose to assemble their machines using our step-by-step installation resources, while others opt for a premium assembly service for a turnkey setup. The choice is yours.

770MX Installation Walkthrough

Tormach machines are designed to be easy to use and support, without requiring on-site installation by a company technician. Guided by our mission to make CNC more accessible, we focus on cost-conscious design and ownership.

Many customers choose to assemble their machines using our step-by-step installation resources, while others opt for a premium assembly service for a turnkey setup. The choice is yours.

TECHNICAL SPECIFICATIONS
TravelsX-Axis: 14 in. (356 mm)
Y-Axis: 7.5 in. (191 mm)
Z-Axis: 13.25 in. (337 mm)
SpindleSpindle Power: 2 hp / 1.49 kW
Peak Spindle Power: 4.5 hp / 3.35 kW
Maximum Speed: 10,000 RPM
Spindle Taper: BT30
Tapping & Threading: Rigid Tapping, Tension/Compression, Thread Mill
Maximum Feed RatesX- and Y-Axis: 450 IPM (11.4 m/min)
Z-Axis: 420 IPM (10.6 m/min)
Power and AirPower Required: Single-Phase, 230 VAC*, 20A breaker
Supplied with NEMA 6-20P plug; requires NEMA 6-20R receptacle
Air Required: 90-120 psi
*±10%, best performance at 240 vac
FrameFrame and Table: Cast iron frame and table, with hand-scraped hydrodynamic ways and tapered adjustment gibs.
Way Surfaces: Low-friction PTFE-filled, Acetyl-bonded sliding surface. Similar to Rulon® and Turcite®.
Machine SpecificationsTable Size: 26 in. × 8 in. (660 mm x 203 mm)
Table Slots: 5/8 in. - Three slots (15.9 mm – Three slots)
Spindle Nose to Table Max Clearance: 13.75 in. (349 mm)
Spindle Centerline to Machine Column: 8.6 in. (218 mm)
Typical System Footprint: 56 in. × 48.5 in. (1422 mm x 1232 mm)
Overall System Height: 88 in. (2235 mm)
Typical System Weight (Factory Assembled): 1500 lbs (681 kg)
Maximum Weight on Table: 500 lbs (227 kg)
EtherCAT Motion System: Absolute Encoder, EtherCAT Servos
AccessoriesPathPilot® Touchscreen Operator Console (Standard)
Air Gun Kit
Mist Collector Kit (Must be Wall or Floor Mounted)
WallControl Compatible Tool / Storage Racks
Warrranty1 Year Warranty against defects in material and workmanship
Extended Warranty available.
