Tormach 24R

INDUSTRIAL, ROBUST DESIGN — THE IDEAL SOLUTION FOR THE PREMIUM WOODWORKER, SIGNMAKER OR DREAMER!

Engineered by Tormach’s CNC machine tool professionals to bring your ideas to life!

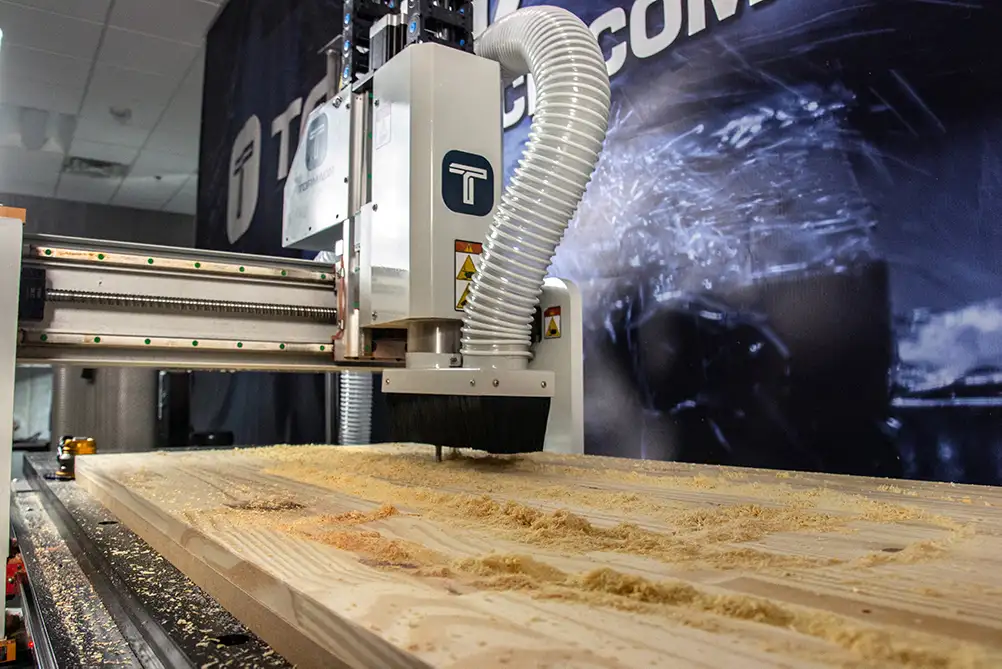

This computer-controlled 24R CNC Router is designed to accurately cut variety of materials, including aluminum, plastics, wood, and more. With an advanced control, rigid cast-iron bed, welded-steel stand, water-cooled chiller, integrated vacuum table, and more than a 2′ x 4′ work envelope, this router is the perfect choice for all your 2D and 3D cutting needs.

LOADED UP AND READY TO GO! Designed to optimize efficiency and productivity. The 24R CNC Router provides your shop with rigid and accurate cutting, durability, ease-of-use and gosh darn it, it’s pretty nice to look at too!

We’re Keepin’ It Cool … The 24R CNC Router automatically comes with a water-cooled spindle and chiller. We’ve included safety features in PathPilot to ensure you’re ready to start cutting. An integrated alarm will notify you if your spindle isn’t cooling or if the chiller is out of water.

TECHNICAL SPECIFICATIONS

TravelsX-Axis24.75 in. (625 mm)
Y-Axis55.75 in. (1415 mm)
Z-Axis6.70 in. (170 mm)
SpindleSpindle Power2 hp (1.5 kW)
Spindle TypeElectrospindle
Minimum Speed10,000 RPM
Maximum Speed24,000 RPM
CoolingWater-Cooled (Chiller Included)
Thread MachiningThread Mill
Maximum Feed RateX-, Y-, and Z-Axis200 in./min (5.0 m/min)
PowerPower RequiredSingle-Phase 115 Vac, 50/60 Hz, 15A breaker
Machine SpecificationsTable TypeIntegrated Vacuum Table
Table Size26.7 in. × 65 in. (680 mm × 1650 mm)
Gantry Clearance6 in. (154 mm)
Machine Footprint72 in. × 39 in. (1.8 m × 1 m)
Overall System Height69 in. × 56.5 in. (1753 mm × 1435 mm)
Overall System Height76.5 in. (1.9 m)
Typical System Weight900 lb (408 kg)
Linear Motion ComponentsAxis MotionBallscrew and Stepper Driver
GuidewaysPrecision Linear Guideway
Machine ConstructionStandWelded Steel (Included)
Machine BaseCast Iron
GantryAluminum
Resolution and AccuracyResolution0.00025 in. (0.006 mm)
Ball Screw Positional Accuracy±0.002 in./ft. (±0.167 mm/m)
Repeatability±0.001 in. (±0.02 mm)
AccessoriesDust Shoe (Included)
Electronic Tool Setter (Optional)
Vacuum Pump (Optional)
10-Tool Automatic Tool Changer (Optional)
