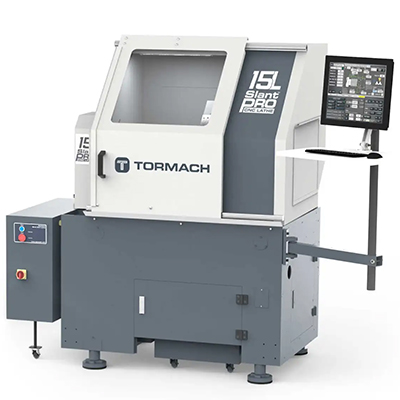

TORMACH 15L SLANT PRO

DESIGNED WITH PROTOTYPING AND SPECIALTY MANUFACTURING IN MIND

The Tormach 15L Slant-PRO® is a compact slant bed CNC Lathe designed for prototyping and specialty manufacturing of turned parts. The 15L Slant-PRO® is loaded with features and options, including standard conversational control, rigid tapping, and configurable tooling and work holding.

A PERFECT FIT FOR THE SMALL SHOP The Tormach 15L Slant-PRO® is a compact CNC slant-bed lathe designed for prototyping and light production work. With highly customizable workholding, rigid tapping support, and a host of configurable options and upgrades, the Tormach 15L Slant-Pro is a multipurpose CNC lathe for the small shop.

TECHNICAL SPECIFICATIONS

Spindle Spindle Power 3 hp (2.24 kW)
Spindle Speed Low: 180 to 2,500 RPM
High: 250 to 3,500 RPM
Spindle Taper 5C (with removable insert)
Spindle Bore Diameter 1.53 in. (38.86 mm) (with 5C insert removed)
Spindle Nose D1-4 Camlock Mount
Motion Max Feed Rate 60 IPM (1.52 m/min) (X)
60 IPM (1.52 m/min) (Z)
Axis Drivers (X,Z) High-Performance
Polyphase Stepper
Motors with Leadshine®
Microstepping Drivers
Power Power Required 230 Vac single-phase, 20A breaker
Power Required (Secondary) 115 Vac single-phase, 20A breaker
Machine Specifications Recommended Footprint 72 in. × 42 in. (1829 mm × 1067 mm)
Typical System Weight 1800 lbs.
Swing Over Bed 15 in. (381 mm) Diameter
Spindle Centerline to Machine Column 11 in. (279 mm)
Swing Over Carriage 6.2 in. (157.5 mm) Diameter
X-Axis Travel 10 in. (254 mm)
Z-Axis Travel 12 in. (305 mm)
Recommended Chuck Size 6 in. (152 mm)
Accessories Full Enclosure (Standard)
8-Station Turret (Optional)
Gang Tooling System (Optional)
Quick Change Tool Post (Optional)
Automatic 5C Collet Closer (Optional)
