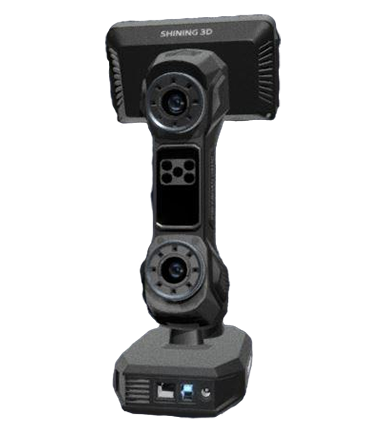

FreeScan Omni Series

World’s First Standalone Metrology 3D Scanner

  • On-Scanner Scan-To-Inspect
  • Certified Accuracy (VDI/VDE 2634 & ISO 10360) of 0.02 mm
  • Multi-Mode & High-Performance
  • Scalable Platform with Modular Expansion
  • Reddot Winner 2026

Inspection On the Go

The FreeScan Omni Series redefines portable metrology as the industry’s first wireless, standalone, certified 3D scanning platform. Its onboard computing and scalable architecture enable fast, accurate scanning, on-device inspection, and seamless expansion for future needs.

Wireless Standalone Design

Certified Metrology-Grade Precision

Blue Laser & IR VCSEL Technology

Built-In Certified Inspection Module

Integrated Video Photogrammetry System

AI-Powered Feature Recognition

Wireless Standalone Design

Certified Metrology-Grade Precision

Blue Laser & IR VCSEL Technology

Built-In Certified Inspection Module

Integrated Video Photogrammetry System

AI-Powered Feature Recognition

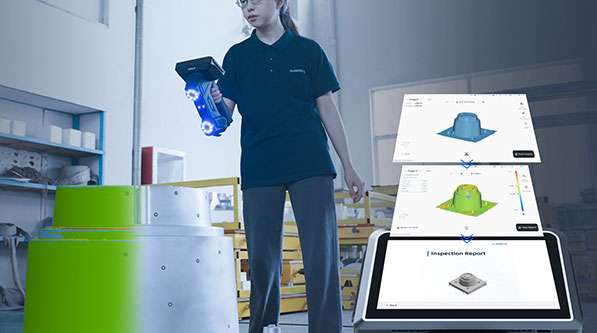

On-Device Metrology-Grade Inspection

Complete the entire inspection workflow—from scanning and meshing to reporting—directly on the scanner. With preset templates and an intuitive interface, operators can generate accurate, consistent reports in just a few steps.

  • Built-in PTB-certified software
  • Automated & intuitive inspection
  • Effortless reporting & export

On-Device Metrology-Grade Inspection

Complete the entire inspection workflow—from scanning and meshing to reporting—directly on the scanner. With preset templates and an intuitive interface, operators can generate accurate, consistent reports in just a few steps.

  • Built-in PTB-certified software
  • Automated & intuitive inspection
  • Effortless reporting & export

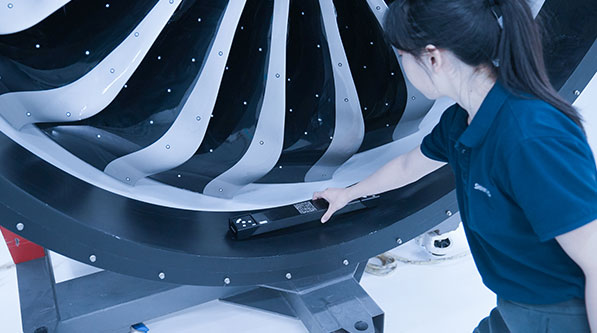

Integrated Video Photogrammetry (VPG)

The FreeScan Omni Series features SHINING 3D’s patented Video Photogrammetry (VPG), eliminating the need for coded markers. By combining photogrammetry with a calibration rod, it performs real-time marker verification through video capture, ensuring consistent volumetric accuracy while simplifying setup for faster, more efficient large-object scanning.

Integrated Video Photogrammetry (VPG)

The FreeScan Omni Series features SHINING 3D’s patented Video Photogrammetry (VPG), eliminating the need for coded markers. By combining photogrammetry with a calibration rod, it performs real-time marker verification through video capture, ensuring consistent volumetric accuracy while simplifying setup for faster, more efficient large-object scanning.

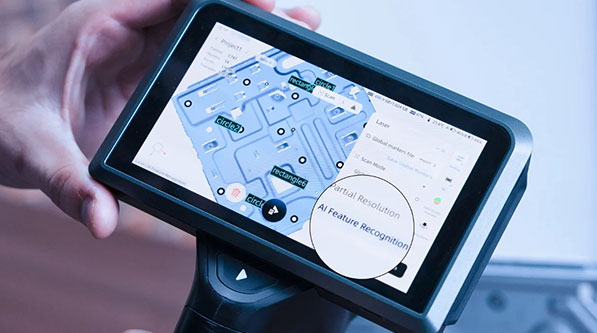

AI-Powered Feature Recognition

AI-powered boundary detection quickly and accurately identifies round holes, rectangular holes, and slots, delivering precise measurements and high-quality data capture for reliable inspection results.

AI-Powered Feature Recognition

AI-powered boundary detection quickly and accurately identifies round holes, rectangular holes, and slots, delivering precise measurements and high-quality data capture for reliable inspection results.

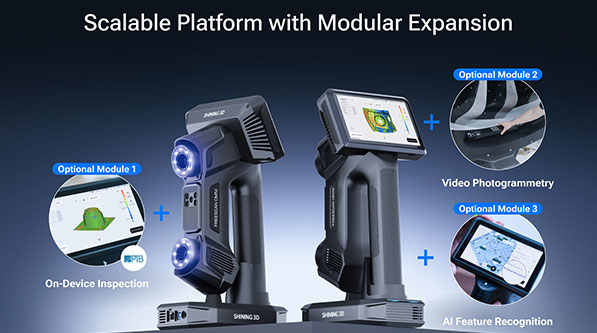

Scalable for Evolving Needs

FreeScan Omni is a fully integrated, on-device scan-to-inspect solution that combines scanning, inspection, and reporting in a single flagship platform. Built on the same hardware foundation, FreeScan Omni Lite delivers certified accuracy and high-performance scanning, with the flexibility to add dedicated modules as your application needs grow.

Scalable for Evolving Needs

FreeScan Omni is a fully integrated, on-device scan-to-inspect solution that combines scanning, inspection, and reporting in a single flagship platform. Built on the same hardware foundation, FreeScan Omni Lite delivers certified accuracy and high-performance scanning, with the flexibility to add dedicated modules as your application needs grow.

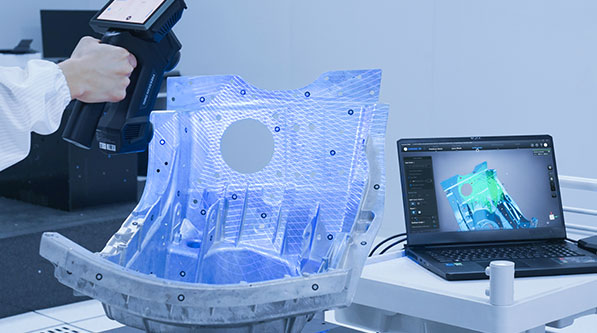

Designed for On-Site Quality Control

  • Certified metrology accuracy: Verified according to VDI/VDE 2634 Part 3 and aligned with ISO 10360 technical standards, ensuring consistent, traceable measurement results (0.02 + 0.03 mm/m) in any on-site environment.
  • Blazing-fast computing processor: Powered by a high-performance processor, FreeScan Omni Series leverages an edge-based computing module for rapid 3D scanning and data processing, significantly enhancing workflow efficiency.

Designed for On-Site Quality Control

  • Certified metrology accuracy: Verified according to VDI/VDE 2634 Part 3 and aligned with ISO 10360 technical standards, ensuring consistent, traceable measurement results (0.02 + 0.03 mm/m) in any on-site environment.
  • Blazing-fast computing processor: Powered by a high-performance processor, FreeScan Omni Series leverages an edge-based computing module for rapid 3D scanning and data processing, significantly enhancing workflow efficiency.

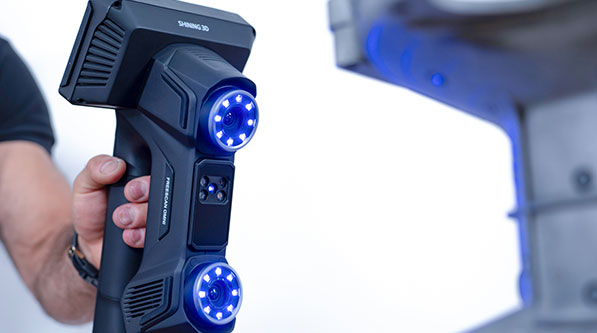

Power Without Compromise

Experience complete wireless freedom with the FreeScan Omni Series. All scanning, processing, and inspection take place directly on the device, while detachable battery packs enable seamless hot-swapping without interrupting your workflow.

Power Without Compromise

Experience complete wireless freedom with the FreeScan Omni Series. All scanning, processing, and inspection take place directly on the device, while detachable battery packs enable seamless hot-swapping without interrupting your workflow.

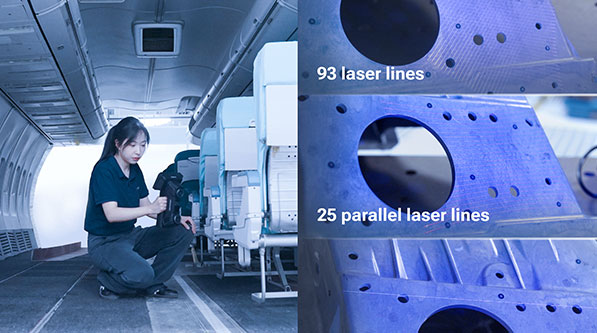

Industrial-Grade Scanning Modes

  • High-speed scan mode with 93 laser lines for overall scans
  • Detailed scan mode with 25 parallel laser lines
  • Deep pockets scan mode with 1 laser line
  • IR rapid scan mode for quick scans without markers

Industrial-Grade Scanning Modes

  • High-speed scan mode with 93 laser lines for overall scans
  • Detailed scan mode with 25 parallel laser lines
  • Deep pockets scan mode with 1 laser line
  • IR rapid scan mode for quick scans without markers

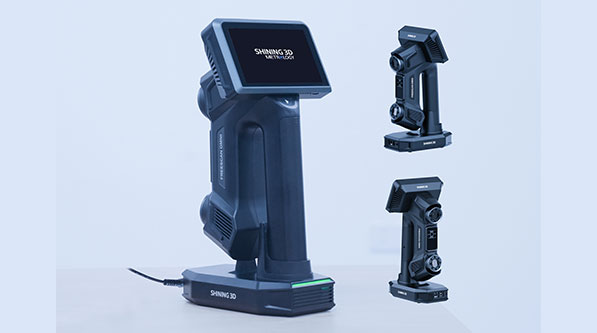

Integrated Power & Wi-Fi Dock

  • Quick power boost — always ready to go.
  • Auto network setup — just dock once to connect.

Integrated Power & Wi-Fi Dock

  • Quick power boost — always ready to go.
  • Auto network setup — just dock once to connect.

2026 Red Dot Design Award Winner

The FreeScan Omni combines advanced metrology performance with award-winning industrial design, earning the prestigious 2026 Red Dot Design Award. This recognition highlights SHINING 3D’s commitment to delivering both cutting-edge technology and exceptional user-focused design.

2026 Red Dot Design Award Winner

The FreeScan Omni combines advanced metrology performance with award-winning industrial design, earning the prestigious 2026 Red Dot Design Award. This recognition highlights SHINING 3D’s commitment to delivering both cutting-edge technology and exceptional user-focused design.

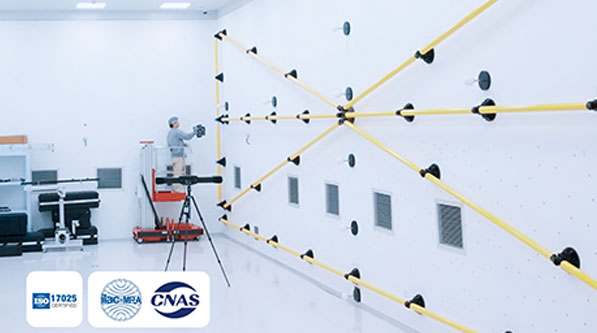

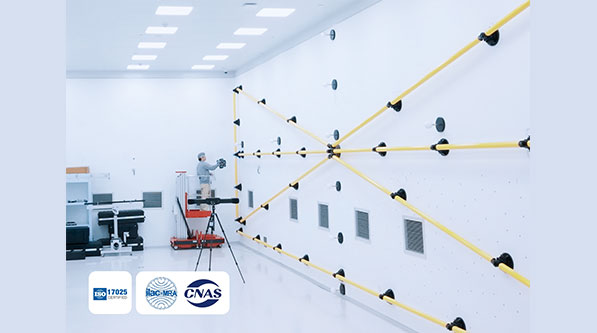

Certified Metrology Precision

  • Verified Standards: Rigorous acceptance testing based on VDI/VDE 2634 and ISO 10360.
  • Accredited Lab: Calibrated in our ISO/IEC 17025 Accuracy Laboratory.
  • Full Traceability: Our integrated control system ensures every measurement is internationally traceable.

Certified Metrology Precision

  • Verified Standards: Rigorous acceptance testing based on VDI/VDE 2634 and ISO 10360.
  • Accredited Lab: Calibrated in our ISO/IEC 17025 Accuracy Laboratory.
  • Full Traceability: Our integrated control system ensures every measurement is internationally traceable.

Support You Can Count On

More than a technology provider, SHINING 3D offers customized solutions, global support, and reliable expertise to help you succeed. With intuitive tools and precise, calibrated accuracy, we empower every stage of your workflow.

Support You Can Count On

More than a technology provider, SHINING 3D offers customized solutions, global support, and reliable expertise to help you succeed. With intuitive tools and precise, calibrated accuracy, we empower every stage of your workflow.

Unlock New Possibilities with Our Scanners

Explore how our 3D scanning solutions can optimize your workflow, increase efficiency, and help you achieve precise, consistent results.

Automotive

The FreeScan Omni Series is built for exceptional versatility, accurately scanning a wide range of surface types, including highly reflective and black surfaces. Its advanced Infrared (IR) mode also enables marker-free scanning, providing greater flexibility across diverse applications.

Construction Machinery

Engineered for demanding environments, the FreeScan Omni Series delivers high-accuracy, standalone scanning for complex construction machinery components. Its portable design enables fast, precise inspections directly on the job site, improving efficiency and productivity.

Energy and Heavy Industrial Applications

Free from cables and laptops, this versatile scanner lets you move effortlessly between workspaces. Its 5.5-inch touchscreen and rechargeable batteries provide a seamless, user-friendly experience for efficient on-site scanning.

General Manufacturing Equipment

The FreeScan Omni Series delivers high-precision, standalone scanning for general manufacturing applications, accurately capturing complex machinery components. By eliminating the need for external cables or laptops, it streamlines quality control, inspection, and reverse engineering workflows.

TECHNICAL DATA
Product TypeOptimScan Q12 HD, OptimScan Q9 HD
FOVLarge range: 220 × 150 mm
Small range: 80 × 50 mm
AccuracyLarge range: 0.01 mm
Small range: 0.004 mm
Point distanceOptimScan Q12 HD: Large range: 0.054 mm, Small range: 0.02 mm
OptimScan Q9 HD: Large range: 0.06 mm, Small range: 0.03 mm
Working distanceLarge range: 600 mm
Small range: 200 mm
Depth of fieldLarge range: 120 mm
Small range: 30 mm
ResolutionOptimScan Q12 HD: 4 × 12.3MP
OptimScan Q9 HD: 4 × 9MP
Light SourceBlue LED
Weight3.6 kg
Dimensions366 × 162 × 132 mm
Data Cable Length5 m
CertificationsCE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX
Acceptance testVDI/VDE 2634 Part 2 & ISO 10360 (Tested in the ISO/IEC 17025 Accredited Accuracy Lab)
