Pro3 Plus

Forged from the Pro2 Series, Raise3D’s newly launched Pro3 Series professional dual extruder 3D printers meet the needs of both production and multi-sized rapid prototyping, with high precision and round-the-clock stable operation.

Build Volume: 300 x 300 x 605 mm
Resolution: <0.005 mm, 5 micron

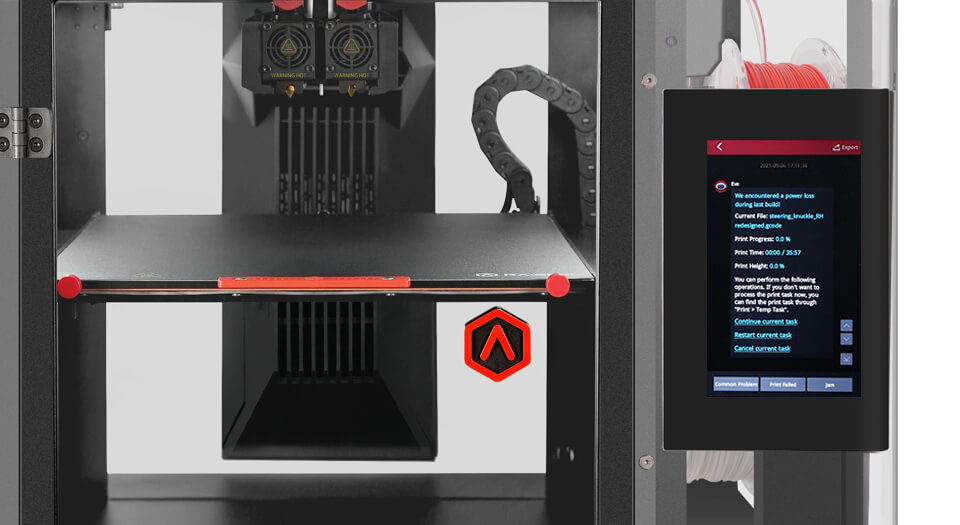

Power-loss Resume
Continue print, after power outage. Never lose a print!

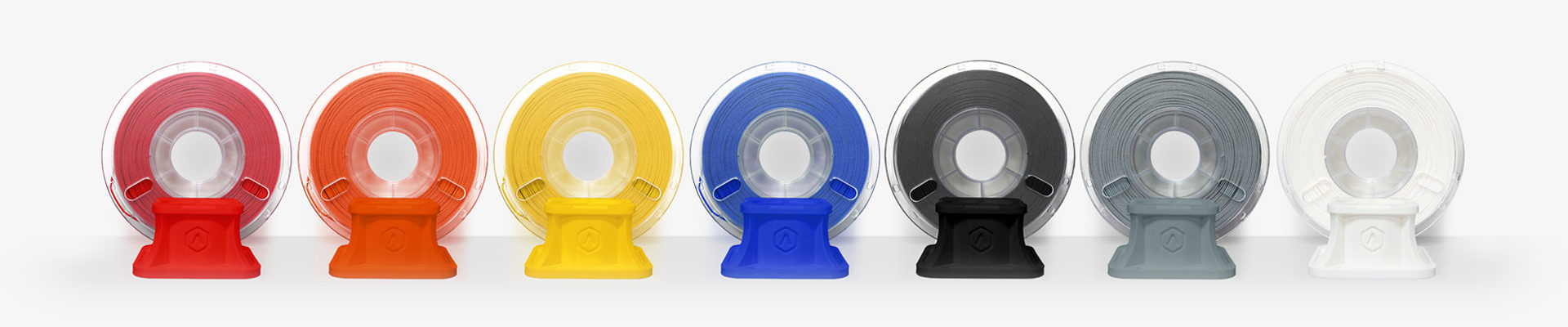

Open-source Filament
Source locally or use your own filaments!

Filament Run-out Sensor
Stops print when material is unexpectedly not feeding properly or runs-out

TECHNICAL SPECIFICATIONS

Build Volume (W × D × H) Single Extrusion Print: 12 × 12 × 23.8 inch/ 305 × 305 × 605 mm
Dual Extrusion Print: 11 × 12 × 23.8 inch/ 280 × 305 × 605 mm
Machine Size (W × D × H) 24.4 × 23.2 × 43.5 inch/ 620 × 590 × 1105 mm
Print Technology FFF (Fused Filament Fabrication)

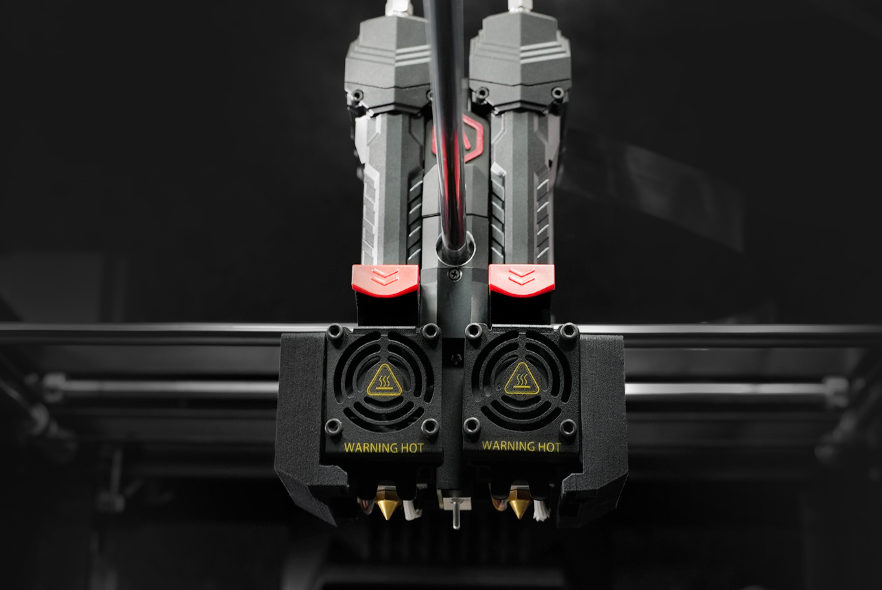

Print Head System Dual-head with electronic lifting system
Filament Diameter 1.75 mm
XYZ Step Size 0.78125, 0.78125, 0.078125 micron
Print Head Travel Speed 30–150 mm/s

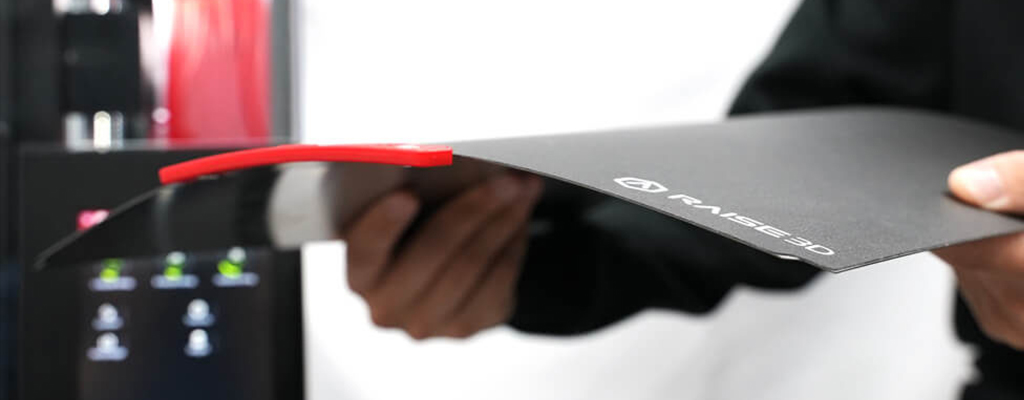

Build Plate Heated aluminum build plate with magnetic holding
Max Build Plate Temperature 110ºC

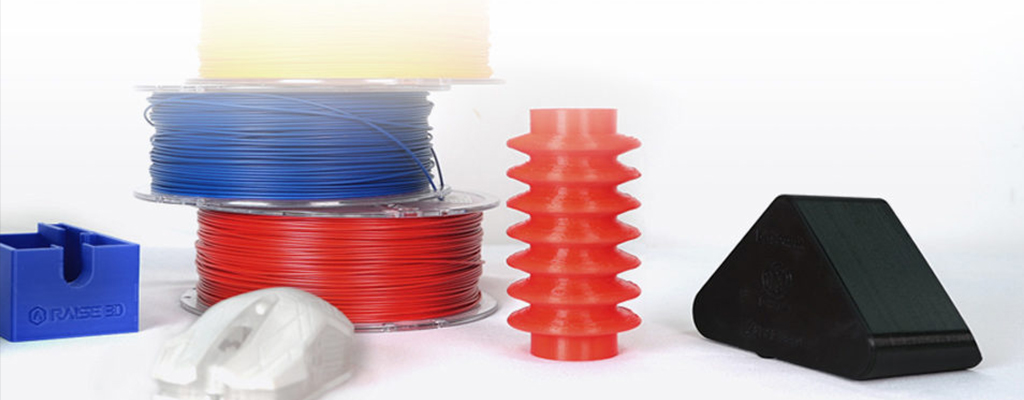

Supported Materials PLA/ ABS/ HIPS/ PC/ TPU/ TPE/ PETG/ ASA/ PP/ PVA/ Nylon/ Glass Fiber Infused/ Carbon Fiber Infused/ Metal Fill/ Wood Fill
Layer Height 0.01-0.25mm
Nozzle Diameter 0.4 mm (Default), 0.2/ 0.6/ 0.8/ 1.0 mm (Available)
