DF2

The Raise3D DF2 is a complete Digital Light Processing (DLP) 3D printing solution designed for rapid printing, smooth surface finishes, fine detail, and reliable performance. Optimized for engineering prototyping, manufacturing aids, and low-volume production, it supports a wide range of high-performance engineering resins.

With RFID technology, the entire print, wash, and cure workflow remains fully traceable, improving efficiency while reducing labor and costs.

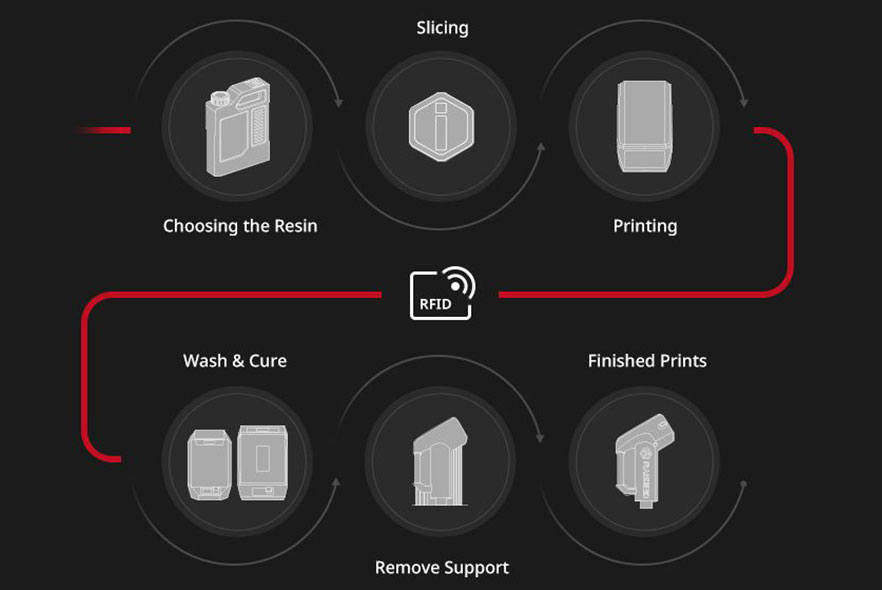

Traceable RFID Workflow for Consistent Results

RFID technology powers the DF2 DLP 3D printer’s traceable workflow, working with ideaMaker to verify the correct settings for every print batch. Once the resin is identified, the DF2 Printer, DF Wash, and DF Cure automatically apply optimized profiles, reducing human error, saving time and costs, and ensuring consistent, repeatable results across batches.

Traceable RFID Workflow for Consistent Results

RFID technology powers the DF2 DLP 3D printer’s traceable workflow, working with ideaMaker to verify the correct settings for every print batch. Once the resin is identified, the DF2 Printer, DF Wash, and DF Cure automatically apply optimized profiles, reducing human error, saving time and costs, and ensuring consistent, repeatable results across batches.

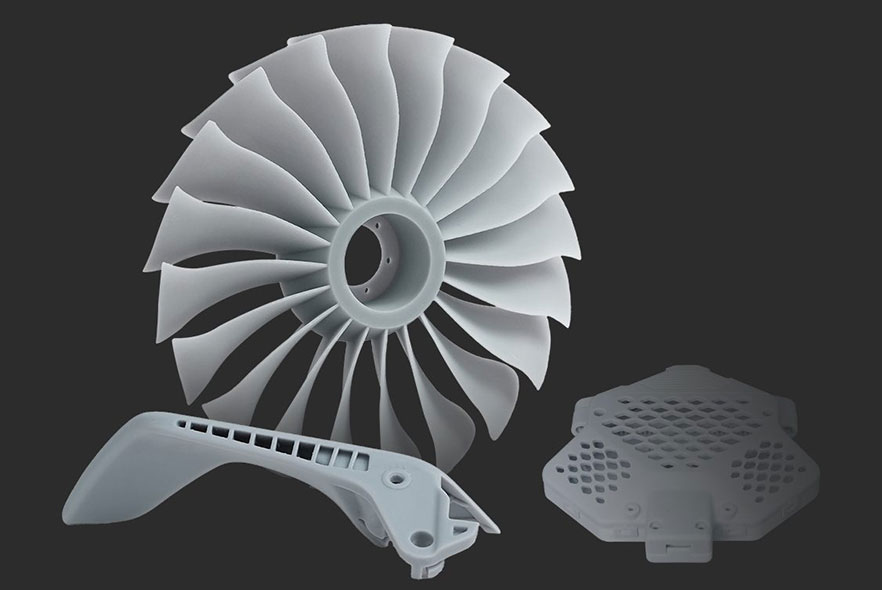

High-Definition Detail for Greater Design Freedom

With a 2560 × 1440 DLP resolution, Contour Compensation, and Anti-Aliasing, the DF2 resin printer delivers finer details and smoother surfaces than many other 3D printing technologies. Its advanced optical design and system calibration ensure exceptional accuracy, making it ideal for producing small, highly detailed parts.

  • Light engine with Texas Instruments’ First Industrial-grade DMD Chip for digital light processing printing
  • Premium light output quality with frame size error ≤ ±0.1 mm and distortion rate ≤ 0.1%
  • Clear pixel image without superimposed effects or surface light field effect

High-Definition Detail for Greater Design Freedom

With a 2560 × 1440 DLP resolution, Contour Compensation, and Anti-Aliasing, the DF2 resin printer delivers finer details and smoother surfaces than many other 3D printing technologies. Its advanced optical design and system calibration ensure exceptional accuracy, making it ideal for producing small, highly detailed parts.

  • Light engine with Texas Instruments’ First Industrial-grade DMD Chip for digital light processing printing
  • Premium light output quality with frame size error ≤ ±0.1 mm and distortion rate ≤ 0.1%
  • Clear pixel image without superimposed effects or surface light field effect

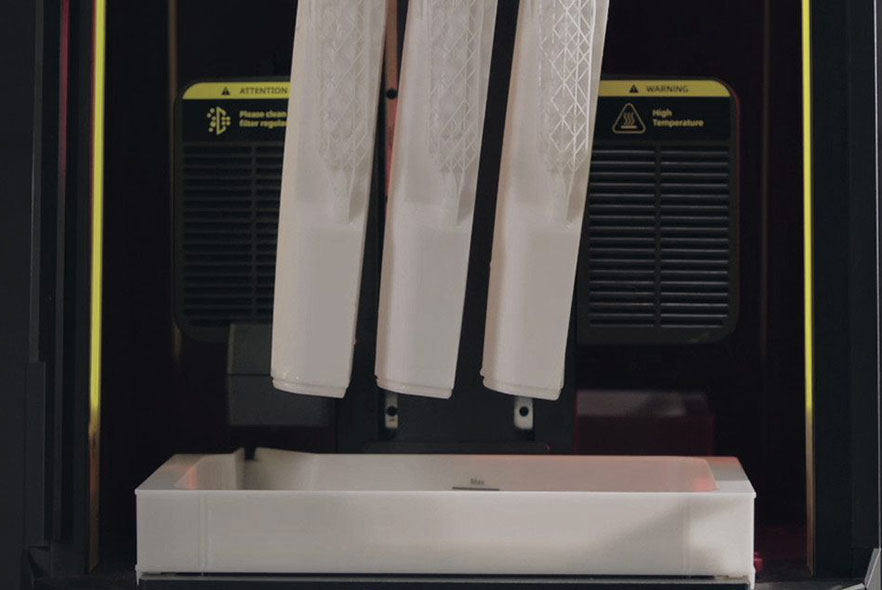

Engineered for First-Print Success

The DF2 DLP 3D printer is engineered for a high first-print success rate through optimized hardware design and intelligent software support.

  • Optimizations in ideaMaker, including Auto Support, Auto Orientation, and Suction Cup Detection, improve DF2’s first print success rate and reduce the need for time-consuming reprints. (Learn more about ideaMaker support for DF2 solution)
  • Air-Peel technology decreases the amount of force exerted on the part to facilitate easy layer detachment, further improving the reliability of print results.
  • Maximum part weight of 10 kg ensures high print quality in the Z-direction for any size print, which is supported by a heavy-duty Z-axis structure that can withstand up to 200 kg of static load.

Engineered for First-Print Success

The DF2 DLP 3D printer is engineered for a high first-print success rate through optimized hardware design and intelligent software support.

  • Optimizations in ideaMaker, including Auto Support, Auto Orientation, and Suction Cup Detection, improve DF2’s first print success rate and reduce the need for time-consuming reprints. (Learn more about ideaMaker support for DF2 solution)
  • Air-Peel technology decreases the amount of force exerted on the part to facilitate easy layer detachment, further improving the reliability of print results.
  • Maximum part weight of 10 kg ensures high print quality in the Z-direction for any size print, which is supported by a heavy-duty Z-axis structure that can withstand up to 200 kg of static load.

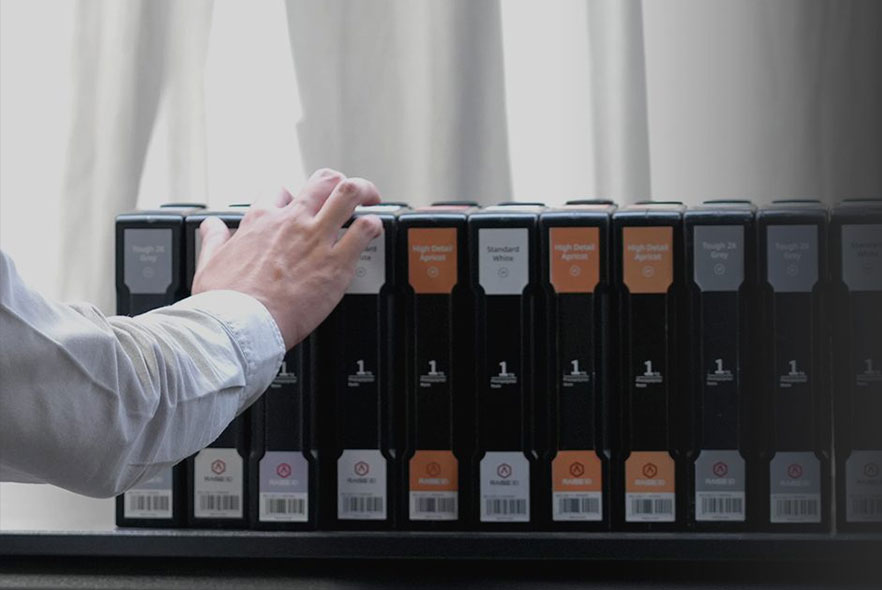

Open Platform for Approved Resins

Raise3D continues to advance material science with a growing portfolio of DLP resins optimized for the DF2 resin printer. In collaboration with industry leaders such as Henkel and Forward AM, Raise3D also expands the range of validated resins available for industrial applications.

Open Platform for Approved Resins

Raise3D continues to advance material science with a growing portfolio of DLP resins optimized for the DF2 resin printer. In collaboration with industry leaders such as Henkel and Forward AM, Raise3D also expands the range of validated resins available for industrial applications.

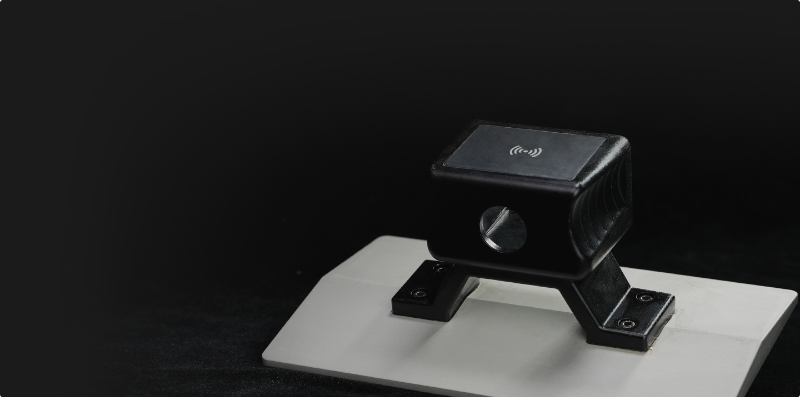

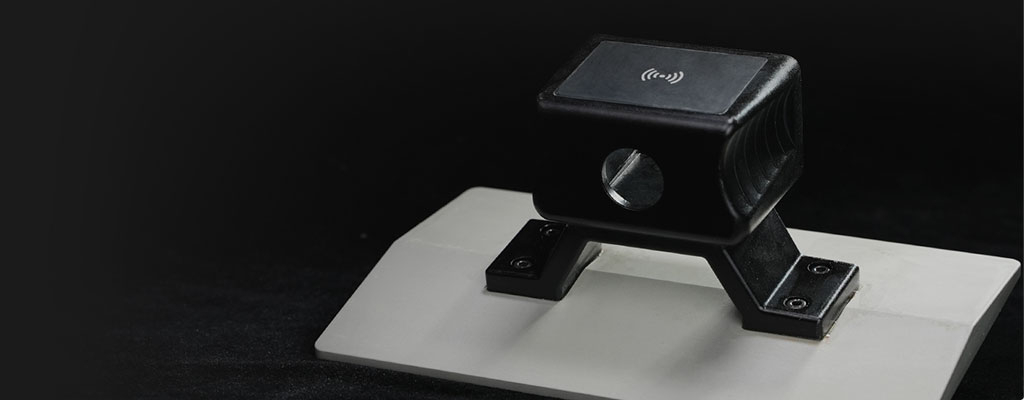

RFID-Powered Smart Build Platform

RFID-Powered Smart Build Platform

RFID automatically stores and retrieves workflow parameters for printing, washing, and curing, minimizing manual setup and streamlining the entire process.

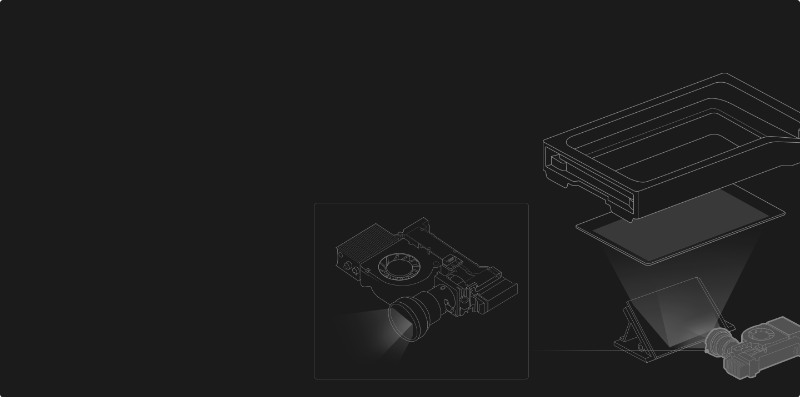

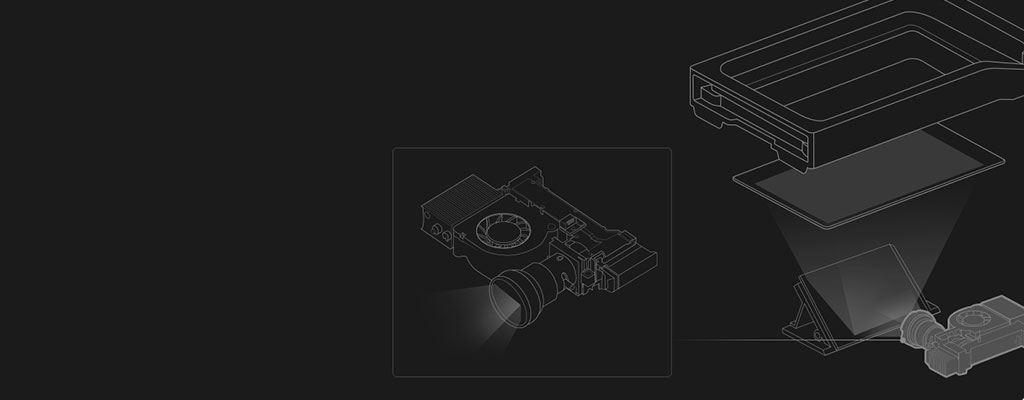

Industrial Grade Optical Design

Industrial Grade Optical Design

Industrial-grade optical components, including Texas Instruments’ Industrial-Grade DMD Chip, high-transparency nFEP film, and optical glass by SCHOTT Germany, optimize the entire projection system to minimize light loss, reduce dispersion, and produce sharp, highly accurate layers.

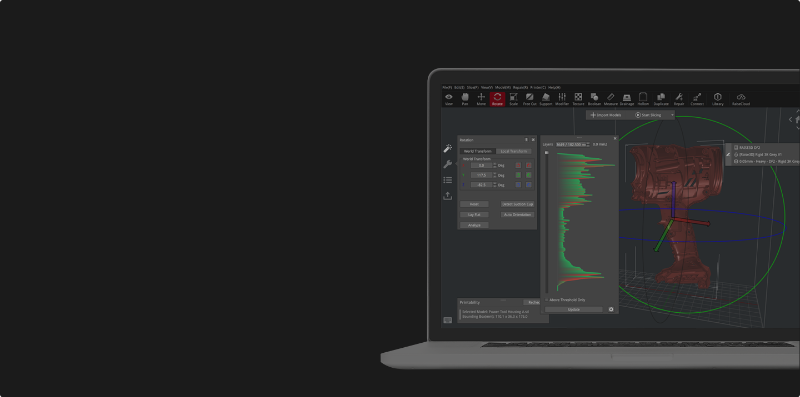

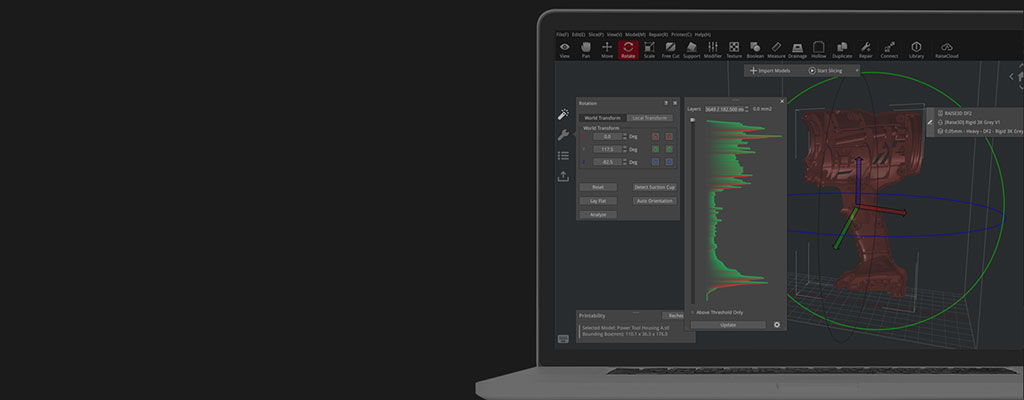

Intuitive Software for Effortless Workflows

Intuitive Software for Effortless Workflows

ideaMaker has added new features designed for use with the Raise3D DF2 printer to reduce learning curves, expand design possibilities, and improve the success rate of DLP printing.

These features include:

  • Antialiasing
  • Auto Support
  • Auto Orientation
  • Auto Cross Section Analysis
  • Contour Compensation
  • Suction Cup Detection
  • Hollow
  • Drainage Hole
  • Texture Generation
  • Smaller Gcode Size
  • Antialiasing
  • Auto Support
  • Auto Orientation
  • Auto Cross Section Analysis
  • Contour Compensation
  • Suction Cup Detection
  • Hollow
  • Drainage Hole
  • Texture Generation
  • Smaller Gcode Size

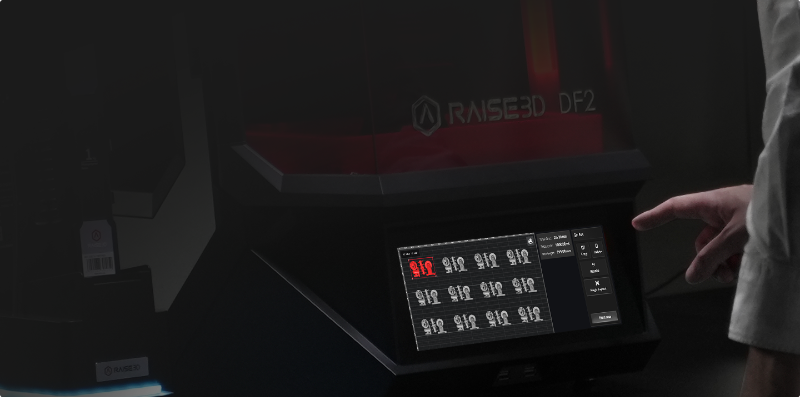

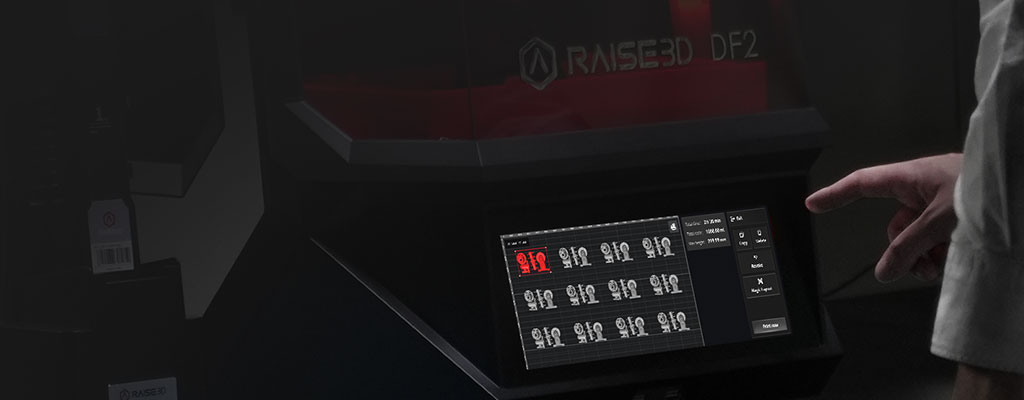

Magic Layout at Your Fingertips

Magic Layout at Your Fingertips

A high-performance 10.25-inch touchscreen lets you adjust print settings directly on the printer without returning to your slicing software. Magic Layout simplifies part arrangement and duplication, while Automatic Pre-Print Inspection verifies key conditions such as resin type, build platform and feeding station installation, and resin level before printing.

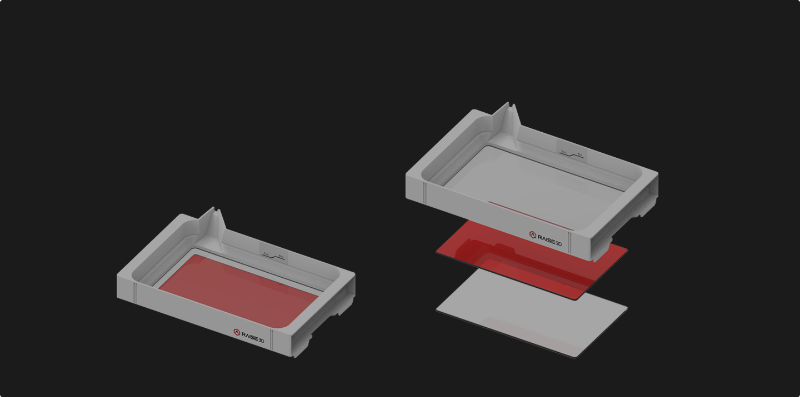

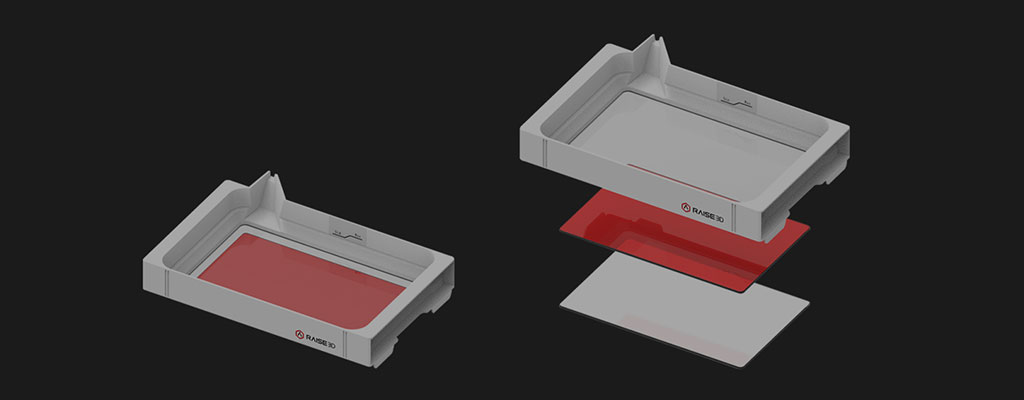

Air-Peel Technology

Air-Peel Technology

Air-Peel technology, positioned between the resin vat and high-clarity glass, reduces peeling force from 50 kg to 10 kg. This promotes smooth layer separation, improves print reliability, and increases overall print success.

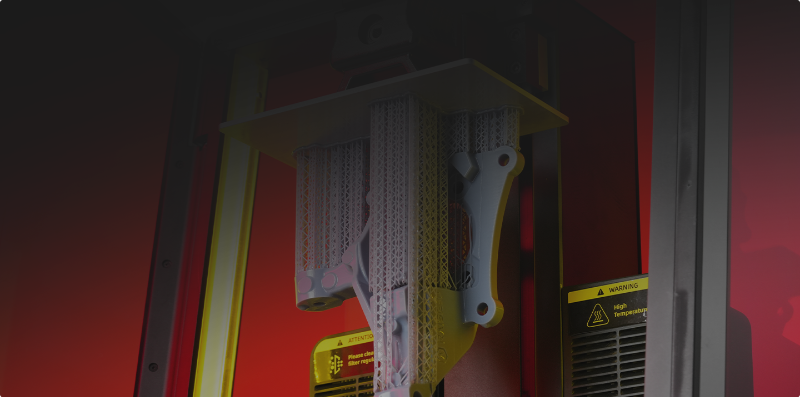

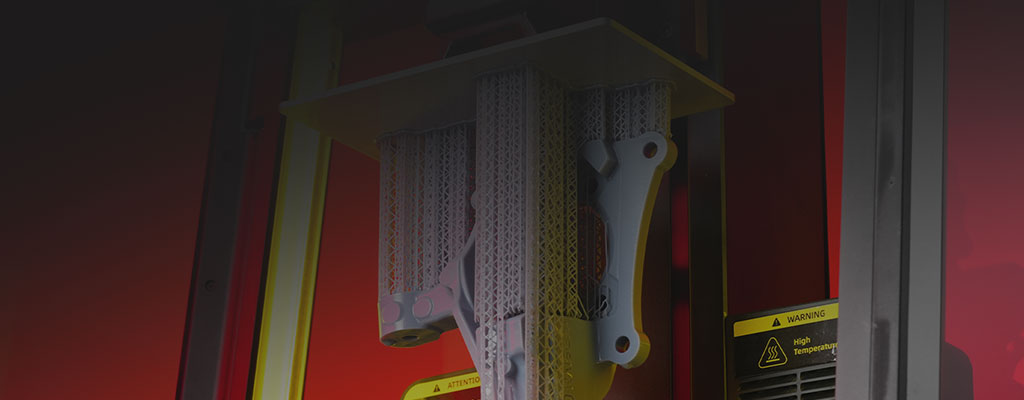

High-Load Capacity Z-Axis

High-Load Capacity Z-Axis

The Z-axis supports up to 200 kg while delivering high positioning accuracy and eliminating staggered layers. Its robust design ensures stable printing of large parts and reliable performance during extended operation.

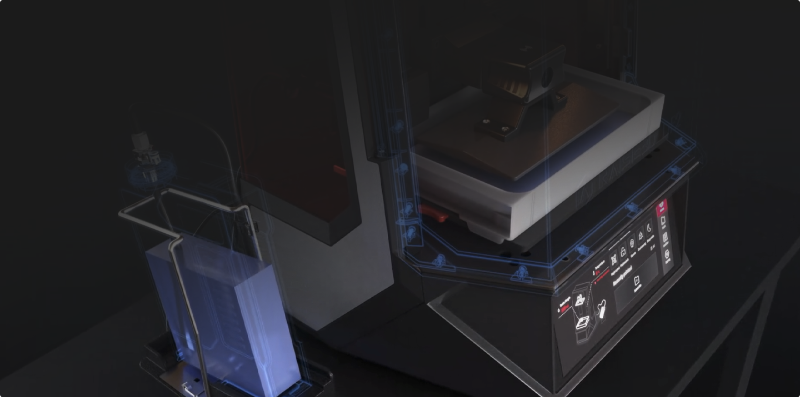

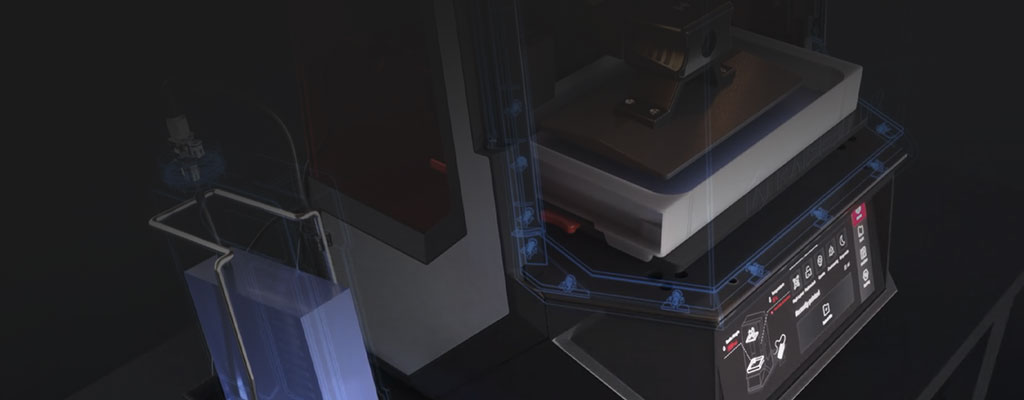

Streamlined Resin Management

Streamlined Resin Management

Auto Resin Refill, Ultrasonic Liquid Level Monitoring, and Assisted Resin Tank Cleanup reduce contact with uncured resin, while the DF Wash flushing system automates solvent drainage with an easy-to-use pump.

TECHNICAL SPECIFICATIONS
DF2
Print TechnologyDigital Light Printing (DLP)/td>
Build Size (W × D × H)200 × 112 × 300 mm (7.87 × 4.41 × 11.8 inch)
XY Resolution2560 × 1440/td>
Max Part Weight10 kg
Max Printing Speed/td>80 mm/h (0.2 mm per layer)
Layer Height50-200 micron
Resin ManagementAuto Resin Feeding, Resin Level Detection, Resin Confirmation
Control PanelTouch Screen (Resolution: 1920 × 720) with Magic Layout (Allow to easily adjust the print layout and duplicate prints)
RFID Print PlatformRecord the type of resin used and the printing, washing and curing settings
Level CalibrationCalibrated in factory
Chamber HeatingMax 40℃
RESINS
Raise3D ResinsRaise3D Standard White Resin, Raise3D High Detail Apricot Resin, Raise3D Tough 2K Grey Resin, Raise3D Rigid 3K Grey
Resin, Raise3D High Clear Resin, Raise3D High Temperature Resin (Coming soon)
OMP (Open Material Program)LOCTITE 3D IND405™, LOCTITE 3D PRO476™, Ultracur3D® RG 3280, Ultracur3D® RG 1100 B
