Formech 1372 Vacuum Former
Energy-Efficient Quartz Heating System
Featuring energy-efficient quartz heaters, the system delivers rapid heating to reduce processing time and energy consumption.
Vacuum Pressure Monitoring
Provides a clear visual display of vacuum pressure in both inHg and bar for consistent forming performance.
Formech Cycle View with 40-Program Memory
View machine cycle status at a glance and adjust parameters in real time without interrupting the current cycle.

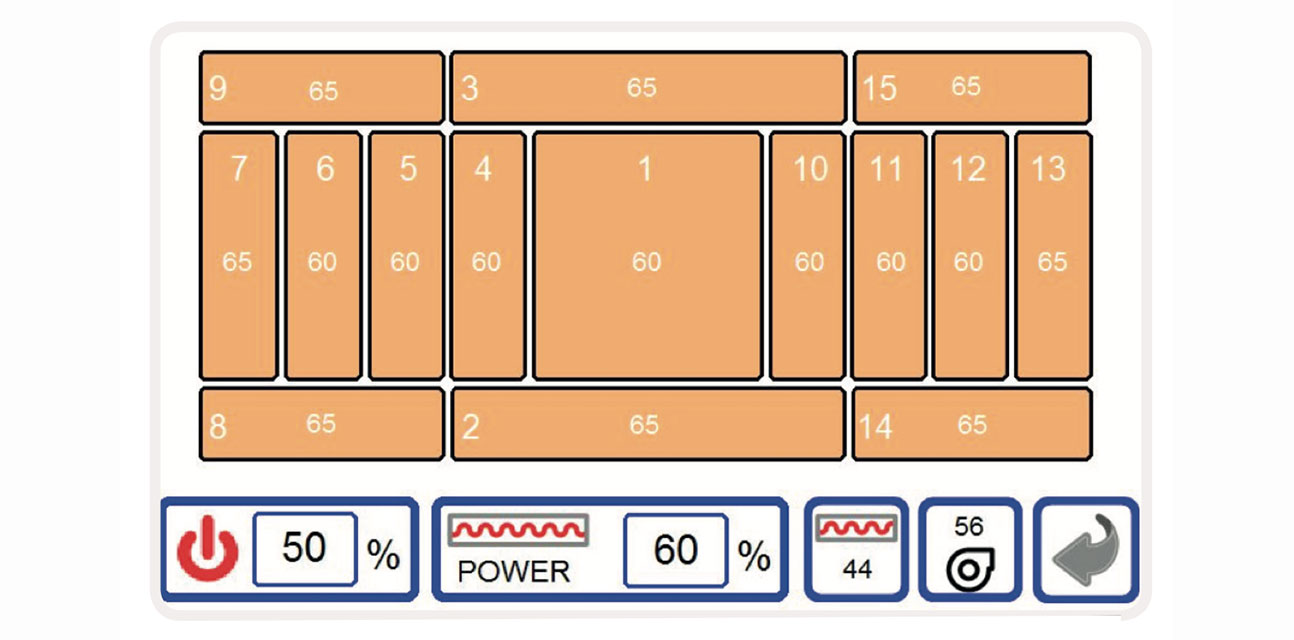

15 Independently Controlled Heating Zones
Fifteen independently controlled heating zones deliver precise heat distribution for consistent results across a wide range of materials and forming applications.
Auto-Level Feature
Prevents material sag during heating by maintaining a consistent distance between the heater and sheet, while an audible alert indicates when the material is ready to form.
Pneumatic Table
Lifts tool table quickly and precisely making effortless operation, even with heavy tools. Twin controls avoid accidental activation.
Multi-User PIN Access Control
Supervisors can assign different access levels to operators for secure, controlled machine operation.
High-Performance Dry Rotary Vane Pump 25m3/h
Provides reliable, high-capacity vacuum power for intensive forming operations.
Integrated Vacuum and Mould Release
Once the formed part has cooled, air is forced between the mould and sheet to enable quick and easy part release.
7'' Color PLC Touchscreen Control
A 7-inch color PLC touchscreen provides intuitive machine control, fast setup, and easy access to operating parameters.

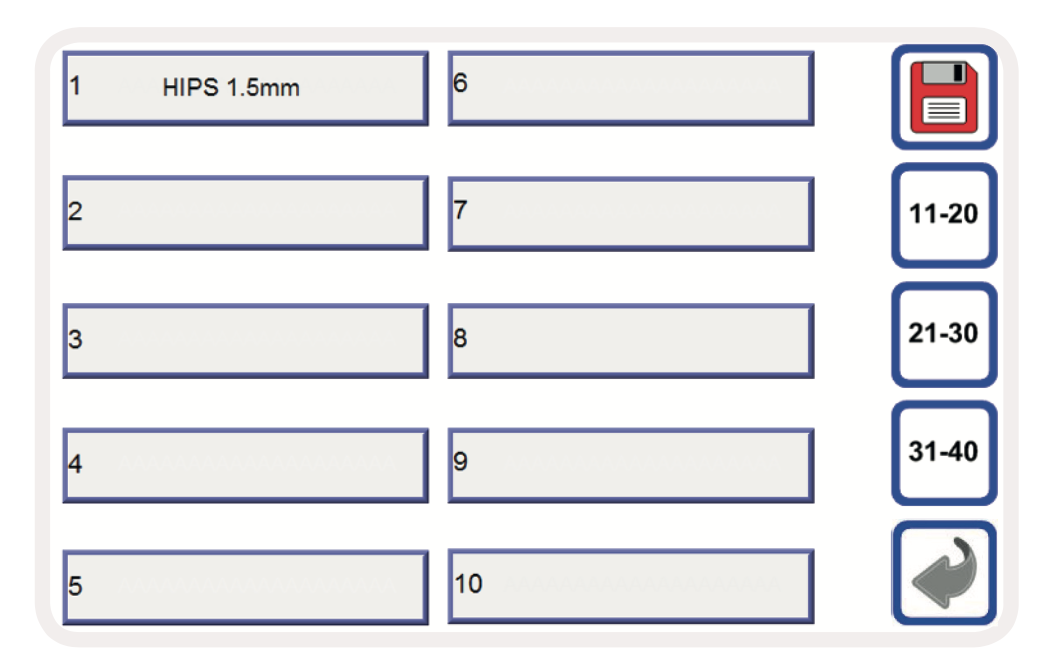

40-Program Memory
Forty nameable presets allow quick, convenient recall of settings for different applications.
Pre-Stretch Feature
The Pre-Stretch feature pumps air into the heated sheet to create a bubble, reducing material thinning when forming deeper moulds.
Precision Vacuum Flow Control
Provides precise vacuum flow control for greater accuracy in demanding forming applications.
Adjustable Table Height
Adjustable table height reduces tool table travel for shallow tools, helping shorten cycle times.
Pneumatic Trigger Clamps
A pneumatically powered clamping system delivers strong, effortless clamping with precise control.
12-Month Product Warranty
Every Formech machine includes a standard 12-month manufacturer’s warranty for added peace of mind.
Energy-Efficient Quartz Heating System
Featuring energy-efficient quartz heaters, the system delivers rapid heating to reduce processing time and energy consumption.
Vacuum Pressure Monitoring
Provides a clear visual display of vacuum pressure in both inHg and bar for consistent forming performance.
Formech Cycle View with 40-Program Memory
View machine cycle status at a glance and adjust parameters in real time without interrupting the current cycle.
15 Independently Controlled Heating Zones
Fifteen independently controlled heating zones deliver precise heat distribution for consistent results across a wide range of materials and forming applications.
Auto-Level Feature
Pneumatic table
The powered tool table lifts quickly and precisely for effortless handling of heavy tools, while twin controls help prevent accidental activation.
Multi-User PIN Access Control
Supervisors can assign different access levels to operators for secure, controlled machine operation.
High-Performance Dry Rotary Vane Pump 25m3/h
Provides reliable, high-capacity vacuum power for intensive forming operations.
Integrated Vacuum and Mould Release
Once the formed part has cooled, air is forced between the mould and sheet to enable quick and easy part release.
7'' Color PLC Touchscreen Control
A 7-inch color PLC touchscreen provides intuitive machine control, fast setup, and easy access to operating parameters.
40-Program Memory
Forty nameable presets allow quick, convenient recall of settings for different applications.
Pre-Stretch Feature
The Pre-Stretch feature pumps air into the heated sheet to create a bubble, reducing material thinning when forming deeper moulds.
Precision Vacuum Flow Control
Provides precise vacuum flow control for greater accuracy in demanding forming applications.
Adjustable Table Height
Adjustable table height reduces tool table travel for shallow tools, helping shorten cycle times.
Pneumatic Trigger Clamps
A pneumatically powered clamping system delivers strong, effortless clamping with precise control.
12-Month Product Warranty
Every Formech machine includes a standard 12-month manufacturer’s warranty for added peace of mind.
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| FORMING CAPACITY | ||
| Forming area | 1330 x 620 mm | |
| Sheet size | 1372 x 660 mm | |
| Max depth of draw | 320 mm | |
| Max material thickness | 6 mm | |
| DIMENSIONS | ||
| Machine width | 2144 mm | |
| Machine height | 1320 mm | |
| Machine depth | 2099 mm | |
| Machine weight | 600 kg | |
| POWER | ||
| Power consumption (kW) | 17 | |
| 3 Phase power requirements | 380-415V / 40A | |
| AIR | ||
| Air requirements (PSI/bar) | 87 / 6 | |
| Operating interface | 7" Colour HMI | |
| Vacuum pump type | Dry rotary vane pump | |
| Pump flow (SCFM @ 0 in. / 60Hz) | 18 | |
| Pump flow m3 /h @ 0mbar / 50Hz | 25 | |
| Mould release method | External air supply | |
| HEATING | ||
| Heater type | Quartz | |
| Heating zones | 15 | |
