BOD2
TECHNICAL SPECIFICATIONS
| Description | Unit | Value |
|---|---|---|
| Product | - | 3D Construction Printer |
| Model | - | BOD2 |
| Measurements (length x width x height) | [m] | - |
| Weight | [kg] | 5390 |
| Current | [A] | 32 |
| Voltage | [V] | 380-480 3 phases, + N + PE (WYE) |
| Frequency | [Hz] | 50/60 |
| Short circuit current IKmin | [A] | 500 |
| Leakage current | [mA] | 300 |
| Max. speed (X-axis) | [mm/s] | 250 |
| Max. speed (Y-axis) | [mm/s] | 250 |
| Max. speed (Z-axis) | [mm/s] | 50 |
| Sound level | [dB(A)] | Less than 70 |
| Required bed plate flatness | [mm/m] | 10 |
| Movement system | - | Servo |

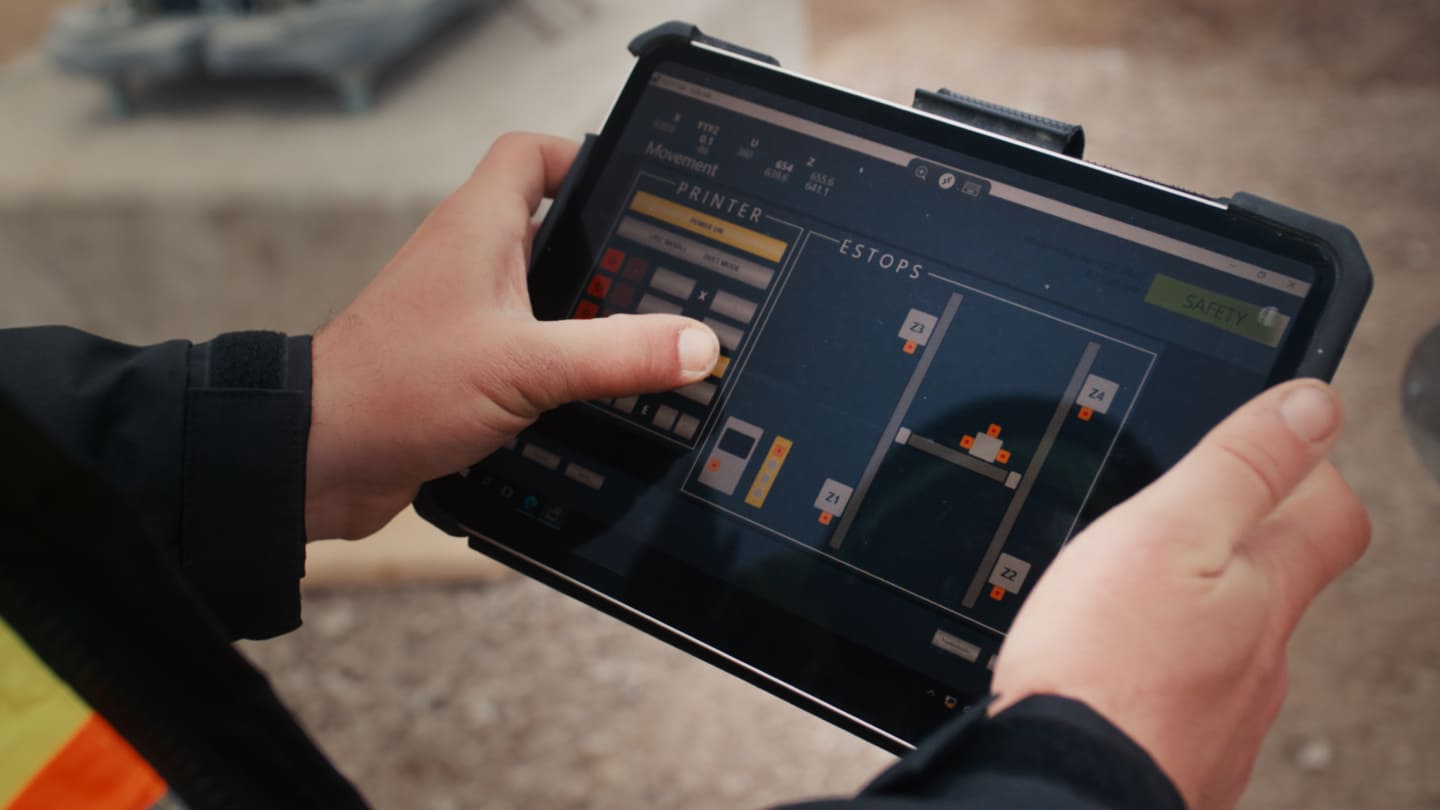

| Safety elements | - | The emergency stop function includes emergency stop push-buttons as input components, which are located in
the following locations of the machine: • 1x on each of the Z-axis • 3x on the printhead • 1x on the operator’s controller panel • 1x on the main E-box |
| Connection | - | Wifi or LAN |

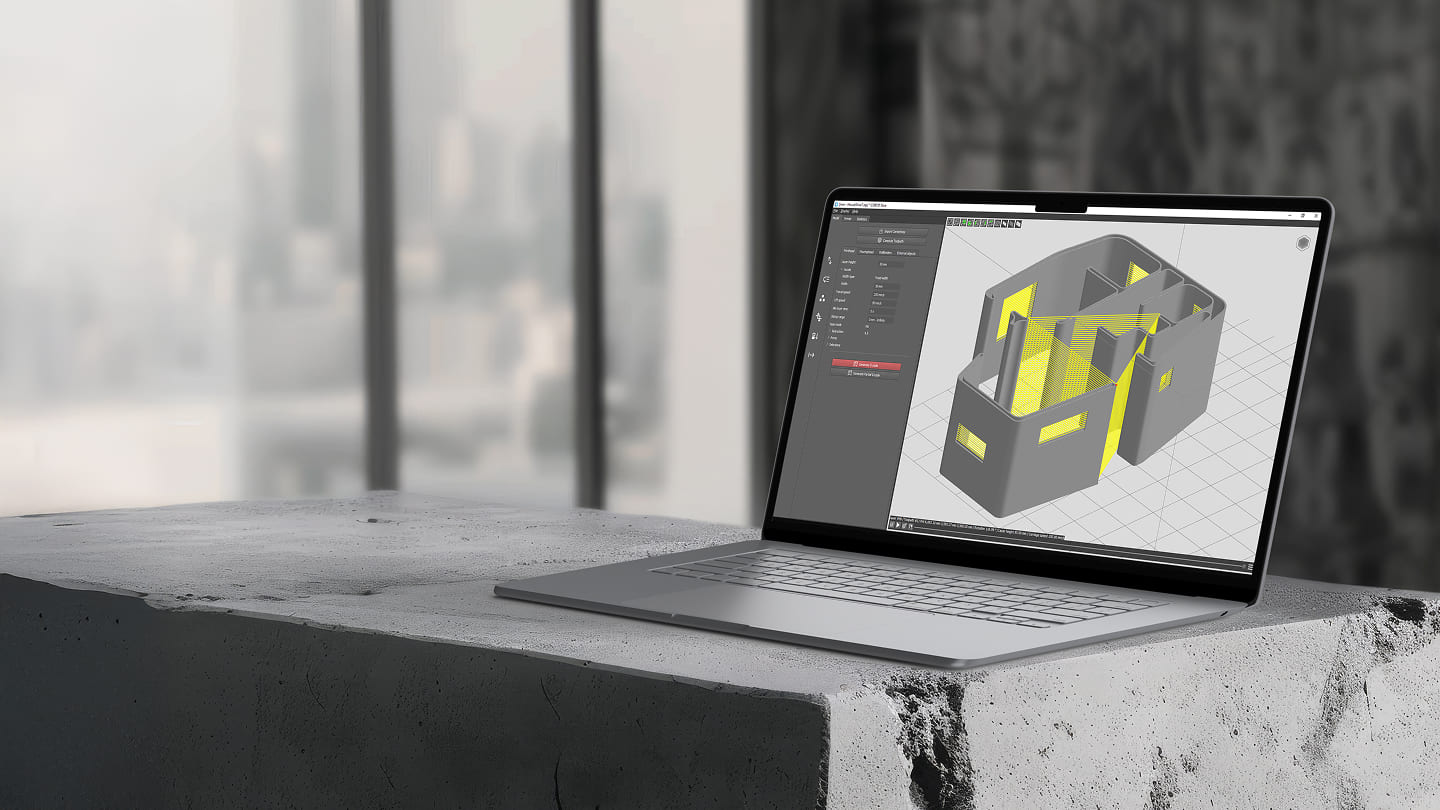

| Software | - | Soft-NA and COBOD Web Control Interface |
| Interface | - | Web Client (through browsers like Chrome, Safari) |
| Recommended operating temperature | [°C] | 5-35 |
