3devo Brand by OmniFab

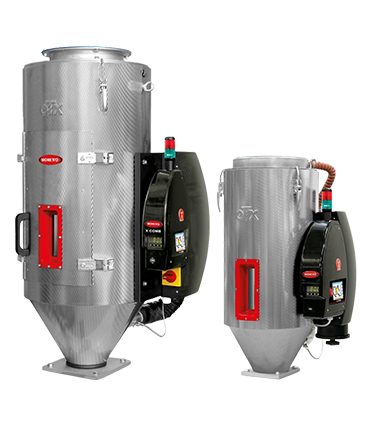

Moretto X COMB XD12

Why we are moving to the X COMB
What changes with the move to the Moretto X COMB XD12

The Vismec DW14 is replaced in the 3devo range by the Moretto X COMB XD12. Both are honeycomb desiccant-wheel dryers doing the same job, so the operating principle your customers already know carries straight over. What changes is capacity, control, running cost and how the dryer can be integrated — alongside two commercial gains: lower shipping cost and a genuinely global service network.

Same drying principle

Rotating honeycomb wheel with drying, regeneration and cooling zones — no retraining.

No compressed air or water

Fully electric. Nothing extra to plumb into the line.

Single-phase supply

230 V standard; 120 V / 60 Hz and UL-CSA executions for North America.

Over-drying protection

Antistress control monitors return air to protect heat-sensitive polymers.

Same drying principle

Rotating honeycomb wheel with drying, regeneration and cooling zones — no retraining.

No compressed air or water

Fully electric. Nothing extra to plumb into the line.

Single-phase supply

230 V standard; 120 V / 60 Hz and UL-CSA executions for North America.

Over-drying protection

Antistress control monitors return air to protect heat-sensitive polymers.

Beyond The Specifications

-50%

Shipping cost per unit
More efficient factory packaging roughly halves the freight cost compared with the DW14 — a direct saving on every unit shipped.

3

Regions with direct support
Moretto has direct branches across Europe, the United States and Asia. Moretto USA in Mercer, PA holds stock of finished machines and spare parts, so service in North America no longer depends on shipping from Europe.

70+

Countries covered
Moretto has operated since 1980 with five production plants and a direct presence in more than 70 countries — a substantially larger service and spare-parts footprint behind the product.

-50%

Shipping cost per unit
More efficient factory packaging roughly halves the freight cost compared with the DW14 — a direct saving on every unit shipped.

3

Regions with direct support
Moretto has direct branches across Europe, the United States and Asia. Moretto USA in Mercer, PA holds stock of finished machines and spare parts, so service in North America no longer depends on shipping from Europe.

70+

Countries covered
Moretto has operated since 1980 with five production plants and a direct presence in more than 70 countries — a substantially larger service and spare-parts footprint behind the product.

TECHNICAL SPECIFICATIONS
VISMEC DW14 (outgoing)MORETTO X COMB XD12 (current)
Hopper capacity6 L or 15 L12 L standard — XD13 (24 L) and XD14 (36 L) optional
Material capacityapprox. 3.6 kg or 9.0 kg7.2 kg standard, up to 21.6 kg with XD14
Dew pointdown to -40 °Cdown to -45 °C
Energy consumption0.06 kW/kg/happrox. 30 W/kg — roughly half, per manufacturer figures
DesiccantMolecular-sieve honeycomb wheel100% zeolite honeycomb rotor
Hopper technologyInsulated drying hopperOTX geometry with central air duct, rockwool insulation and shockproof Spyro finish
InstallationStandalone batch dryingBatch or inline — mounted on the extruder feed throat, or Venturi-fed from a separate position
ControlMaterial presets, programmable timerColour touchscreen with editable material database, remaining dry time, 8-hour temperature history and USB export
MonitoringVisual and acoustic alarmsLED status bar, red/green lamp, MOWIS-ready for supervision
OptionsTrolleyCRC trolley, antiblock slide gate, VTM31 Venturi loader, Master 300 remote pendant
