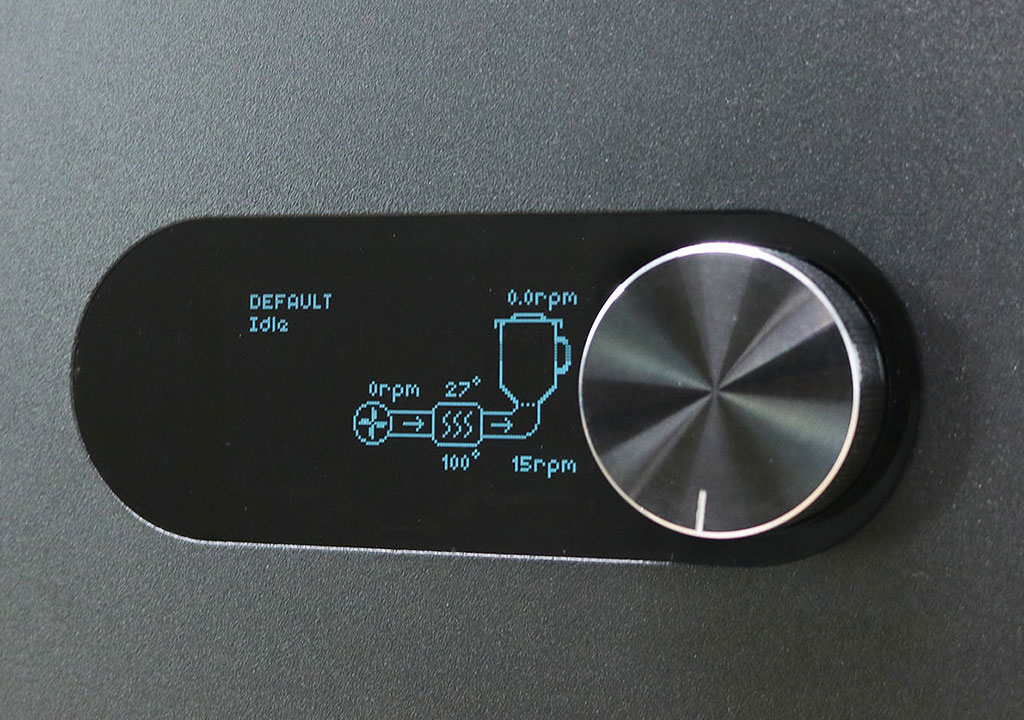

CUSTOMIZE SETTINGS
Air flow, temperature and stirring speed
PRESETS
Available for standard materials
5 LITERS
Hopper volume
1KG/3HRS
Drying capacity for PA6
TECHNICAL SPECIFICATIONS
| Hopper | Volume | 5 liters |

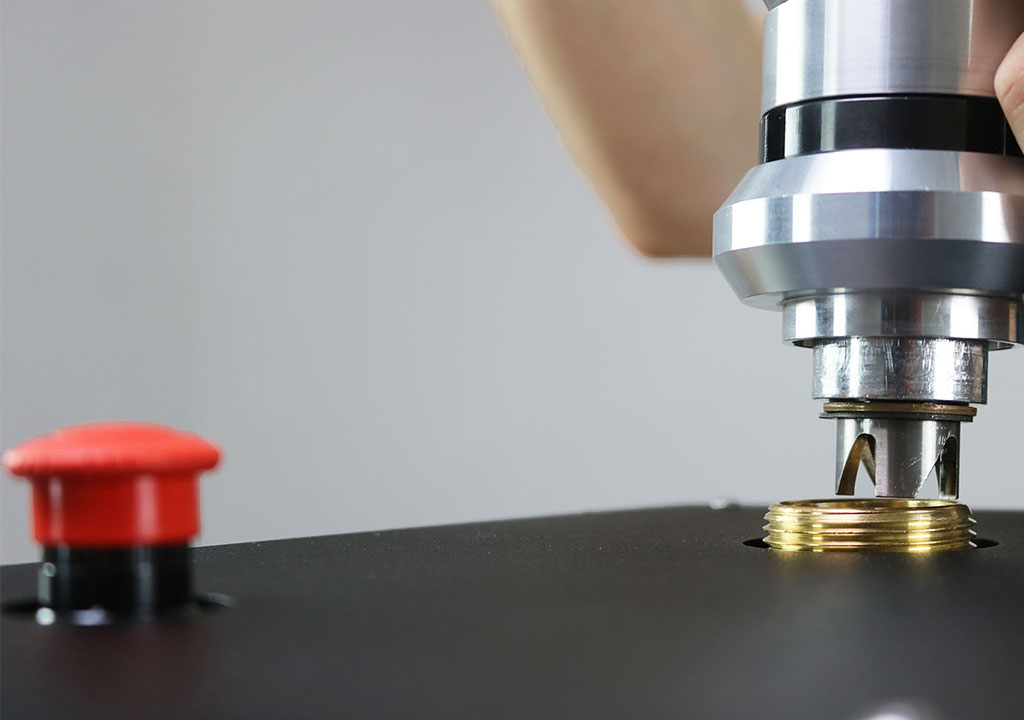

| Assembly | Quick-release | |
| Drying capacity | 1kg / 3 hr (for PA6) | |

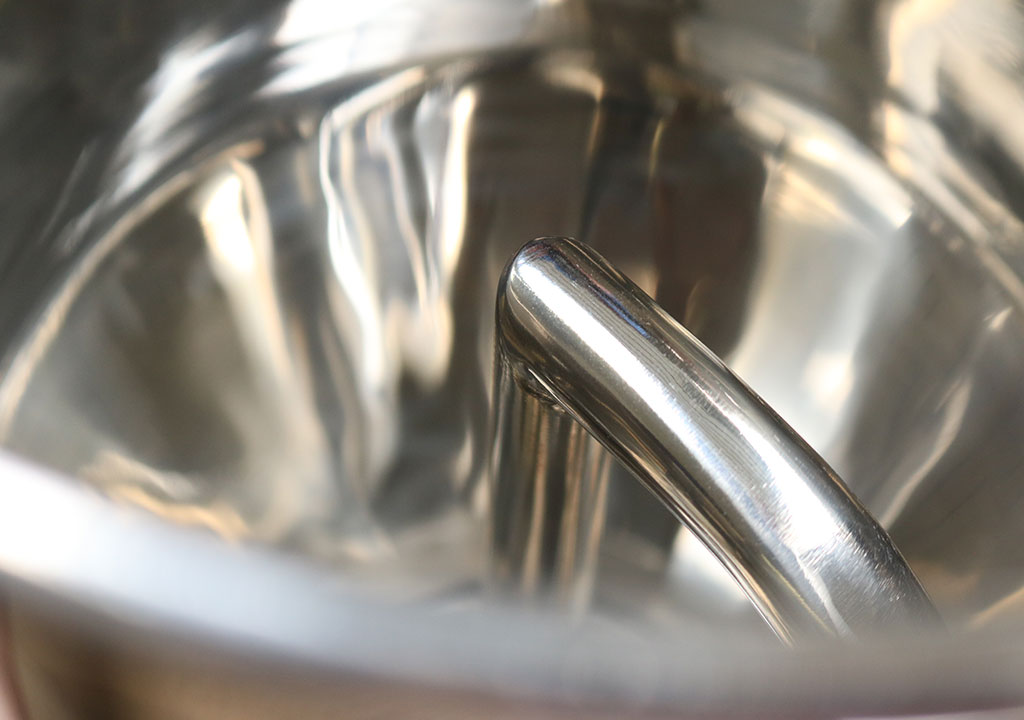

| Hopper material | Stainless steel polished | |
| Temperature | Stable temperature control | Up to 160 °C |
| Materials | Compatiblity | Granulates, flakes and powders |
| Settings | Presets for standard materials | |
| Material amount | Recommendation: 1 to 3 kg | |
| Energy | Voltage | 220 - 230V |
| Frequency | 50 - 60 Hz | |
| Accessibility | Clean | Easy to clean |

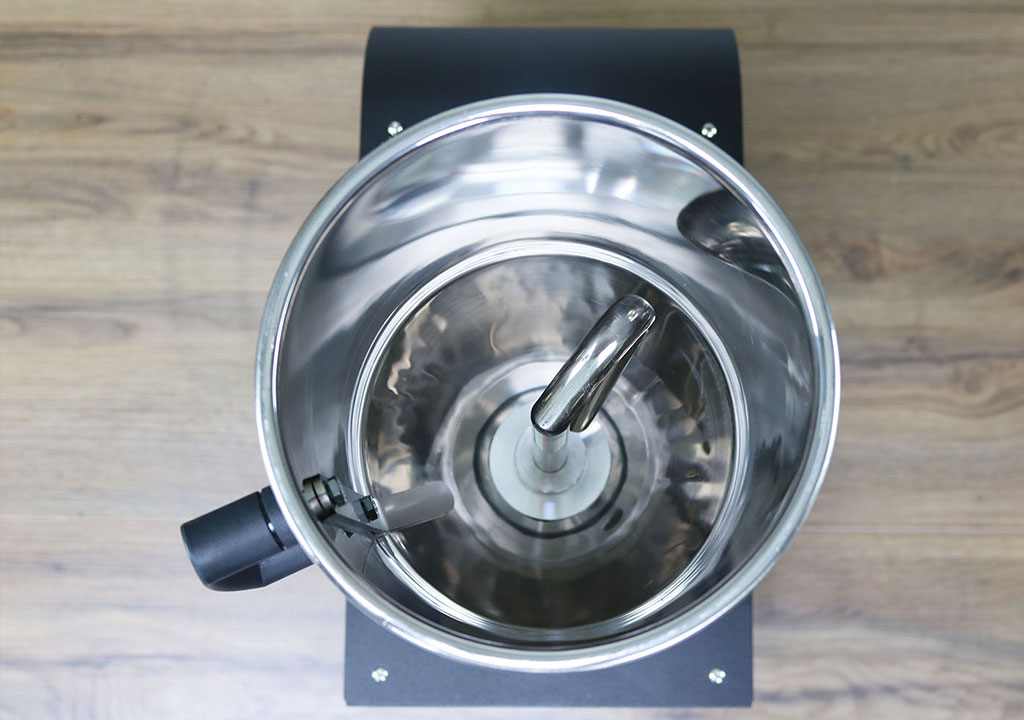

| Stirring | Integrated stirring mechanism: Adjustable speeds | |
| Air flow | Adjustable | |
| Size & Weight | Dimensions with hopper | 220 mm x 425 mm x 720 mm 8.7 x 16.7 x 28.3 inches |
| Dimensions without hopper | 220 mm x 425 mm x 360 mm 8.7 x 16.7 x 14.2 inches |
|
| Weight of hopper | 3.5 kg / 7.7 lbs. | |
| Weight of the dryer body | 13.6 kg / 30 lbs | |
| Weight of dryer body & hopper | 17.1 kg / 37.7 lbs. |
