Build your PCB instantly with the Voltera

VOLTERA V ONE

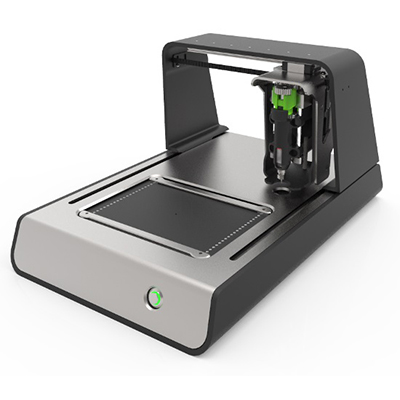

The Voltera V-One brings quick turn PCBs to your desktop. Import your Gerber file into the Voltera software, press print, and the V-One will bring your board to life. Use the solder paste dispensing and reflow features to mount components onto your printed board, or mount components on a prefabricated board with ease.

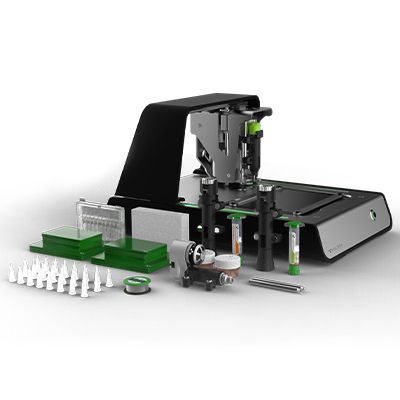

The V-One includes all the accessories and consumables you need to get started.

Lead Time: 1-2 weeks

VOLTERA V ONE FEATURES

  • Zero Day Lead Time
  • Built to Grow
  • Less Costly Mistakes
  • Works with Factory Boards
  • Surprisingly Usable Software
  • No Nasty Chemicals

TECHNICAL SPECIFICATIONS

PRINTING METRIC IMPERIAL
Minimum Trace Width 0.2mm 8mil
Minimum Passive Size 1005 0402
Minimum Pin-to-Pin Pitch 0.65mm 26mil
Resistivity 12mΩ/Sq @ 70um Height 12mΩ/Sq @ 3mil Height
Supplied Substrate Material FR4 FR4
Maximum Board Thickness 3mm 0.125"
DRILLING METRIC IMPERIAL
Spindle Speed (Max.) 13,000 RPM
Power 12V, 25W
Runout (TIR) 0.076mm 0.003"
Shank Diameter 3.175mm 1/8"
Supplied Substrate Material FR1
Bit Diameter (Max.) 2mm 0.078"
Bit Length (Max.) 38.1mm 1.5"
SOLDERING METRIC IMPERIAL
Minimum Passive Size 1005 0402
Minimum Pin-to-Pin Pitch 0.5mm 20mil
Solder Paste Alloy Sn42/Bi57.6/Ag0.4 Sn42/Bi57.6/Ag0.4
Solder Wire Alloy SnBiAg1 SnBiAg1
Soldering Iron Temperature 180-200°C 355-390°F
SOLDER COMPATIBILITY Sn42/Bi57.6/Ag0.4 Solder Sn63/Pb37 Solder
Standard Ink ✔ ✘
Flexible Ink ✔ ✘
Copper PCBs ✔ ✔
HASL PCBs ✘ ✔
Footprint and Print Bed METRIC IMPERIAL
Dimensions (L × W × H) 390mm × 257mm × 207mm 15.4" × 10.1" × 8.2"
Weight 7kg 15.4lbs
Print Area 128mm × 116mm 5" × 4.5"
Max. Heated Bed Temperature 240°C 464°F
Software Requirements Operating Systems Windows 7, 8, 10 (64bit), OSX 10.11+
Compatible File Format Gerber
Connection Type Wired USB 2.0
