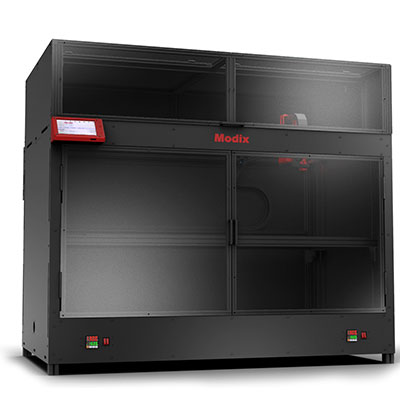

MODIX 120X

Modix BIG-120X printer was first introduced in late 2018. Similar to BIG-60, it has all the latest components of generation 4 and enjoy the same level of modular offering to better match your needs and budget.

Unique Specifications:

  • Delivery: self assembly kit
  • Print volume: 1,200 X 600 X 640 mm (XYZ).
  • Machine Size (WxDxH): 1,556×1,060×1,506 mm
  • Shipping Weight: ~170 KG (depend on add-on selection)
  • Enclosure: Optional
  • IDEX – Secondary print head: optional
  • Z Axis Guides: Smooth rods, Hiwin rails – optional

BUILD SIZE: 1,200 x 600 x 600 mm (47.2 x 23.6 x 23.6 in)
RESOLUTION: 50-800 microns
ITEM CODE: MDX120

TECHNICAL SPECIFICATIONS

Build Size1200 x 610 x 610 mm
~47.2×23.6×25.2 inch
Machine Size(WxDxH)1,556×1,060×1,506 mm
~61.2×41.7×59.2 inch
Shipping Weight170 KG
~325 Ibs
EnclosureOptional
IDEXOptional
Z Axis GuidesHiwin Rails Optional
DUEX Expansion boardIncluded
Tilt screen & emergency buttonOptional
CastersOptional
