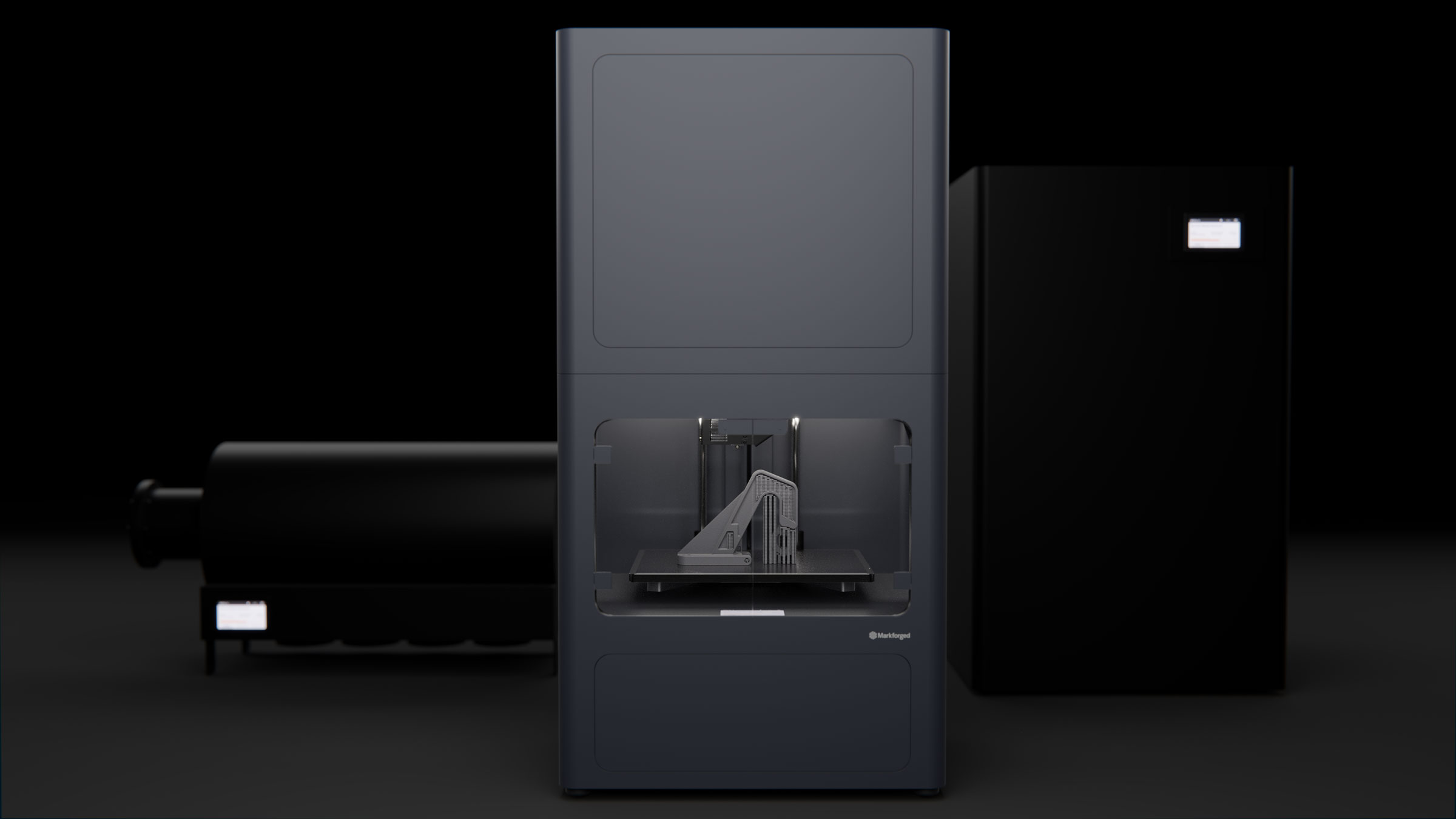

Markforged Metal X

End-to-end Metal 3D printing solution

MARKFORGED METAL X

The Metal X makes metal 3D printing simpler than ever before. Learn how you can go from design to functional 3D printed metal parts quickly, easily, and more affordably.

The Markforged Metal X additive manufacturing process combines metal injection molding (MIM) and fused filament fabrication (FFF) technologies together into Bound Powder Extrusion. BPE provides a simple, cost-effective way to create metal parts.

Simple, Yet Powerful

The Metal X is one of the most intuitive metal 3D printers available today. Print a wide range of materials from stainless steels to copper with minimal training on a closed workflow. Scaling up capacity is easy; just add printers.

Safe and Affordable

The Metal X is designed to be safe to use and accessible for all fabricators. It costs several times less than DMLS metal 3D printing systems and requires no dedicated operator, no powder management system, and minimal PPE.

Quality Parts, Fast

The Metal X is purpose-built for consistent part quality and a seamless user experience. Markforged combines superb software, materials research, and an advanced motion system to deliver industrial-grade parts quickly and reliably.

17-4PH Stainless Steel

Combines high strength, corrosion resistance, and hardness. Used in a wide variety of manufacturing applications.

A2 and D2 Tool Steel

Air hardening tool steels — A2 can be air-hardened up to 50 HRC and is tough, while D2 can be air-hardened to 55 HRC and is extremely abrasion resistant. Used for dies, stamps, and cutting tools.

Inconel 625

A proprietary nickel-chromium alloy that excels in high temperatures and corrosive environments. Used in automotive and aerospace.

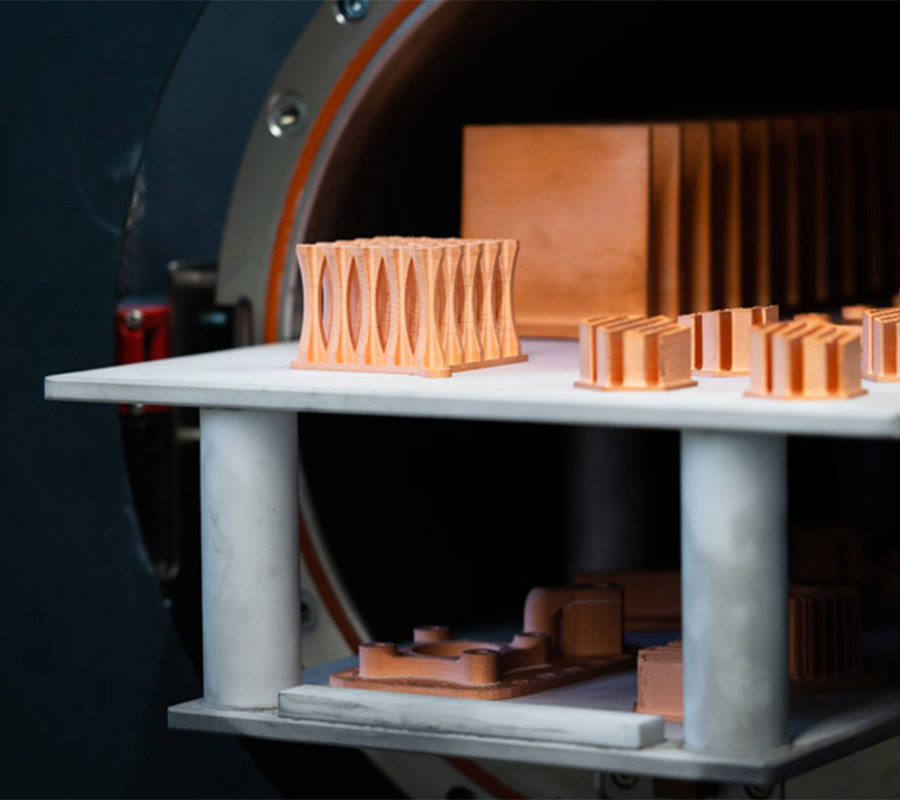

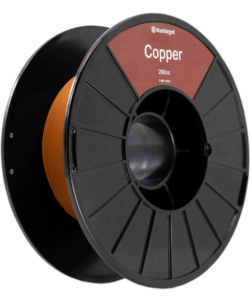

Copper

Combines thermal and electrical conductivity. Print heat sinks, custom conductive elements, and other geometrically complex parts.

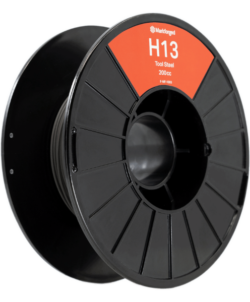

H13 Tool Steel

A hot-work tool steel with excellent toughness, wear resistance, and heat resistance. Excels in high temperatures.

TECHNICAL SPECIFICATIONS

Printer Properties	Process	Metal fused filament fabrication
	Build Volume	300 x 220 x 180 mm (11.8 x 8.7 x 7.1 in)
	Machine Size	575 x 467 x 1,120 mm (22.7 x 18.4 x 44.1 in), 75 kg (160 lbs) Touchscreen: 12 cm (4.7 in) horizontal extension
	Print Chamber	Heated
	Print Bed	Heated, vacuum-sealed print sheet, auto bed leveling
	Print System	Two nozzles — Metal material and release material
	Power Requirements	100–120 / 200-240 VAC (12A / 6A), IEC 60320 type C20
	RF Module	Operating Band 2.4 GHz Wi-Fi Standards 802.11 b/g/n
Materials	Metal Material	Stainless steel (17-4 PH), Tool steel (H13, A2, D2), Inconel 625, Copper
	Release Material	Ceramic (consumed at 1:10 ratio to metal spools, on average)
	Media (Spools)	Filament fed, bound powder
Part Properties	Max Part Size	250 x 183 x 150 mm (9.8 x 7.2 x 5.9 in), 10kg
	Max Part Size	250 x 183 x 150 mm (9.8 x 7.2 x 5.9 in), 10kg
	Supports	Metal material with ceramic release layer
	Layer Height	50µm and 125µm post-sinter
Software	Supplied Software	Eiger Cloud (Other options available at cost)
	Security	Two-factor authentication, org admin access, single sign-on

Start printing your own metal parts today

Talk to our experts via Online consultation and request for a demo
