High Performance 3D Printing

MARKFORGED MARK TWO

A leading way to make aluminum-strength parts on your desktop — the Mark Two carbon fiber composite 3D printer enables engineers to generate massive value for their business.

TECHNICAL SPECIFICATIONS

Printer Properties Process Fused filament fabrication, Continuous Filament Fabrication
Build Volume 320 x 132 x 154 mm (12.6 x 5.2 x 6 in)
Weight 16 kg (35 lbs)
Machine Footprint 584 x 330 x 355 mm (23 x 13 x 14 in)
Print Bed Kinematic coupling — flat to within 160 μm
Extrusion System Second-generation extruder, out-of-plastic detection
Power 100–240 VAC, 150 W (2 A peak)
RF Module Operating Band 2.4 GHz Wi-Fi Standards 802.11 b/g/n
Materials Plastics Available Onyx, Nylon White, Precise PLA, Smooth TPU
Fibers Available Carbon Fiber, Fiberglass, Aramid Fiber (Kevlar®), HSHT Fiberglass
Tensile Strength 800 MPa (25.8x ABS, 2.6x 6061-T6 Aluminum)
Tensile Modulus 60 GPa (26.9x ABS, 0.87x 6061-T6 Aluminum) *
Part Properties Layer Height 100 μm default, 200 μm maximum

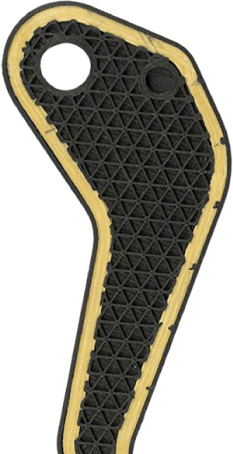

Infill Closed cell infill: multiple geometries available
Software Supplied Software Eiger Cloud (Other options available at cost)
Security Two-factor authentication, org admin access, single sign-on

The power of continuous carbon fiber at your fingertips
