Formech 686 Vacuum Former
Energy-Efficient Quartz Heating System
Featuring energy-efficient quartz heaters, the system delivers rapid heating to reduce processing time and energy consumption.

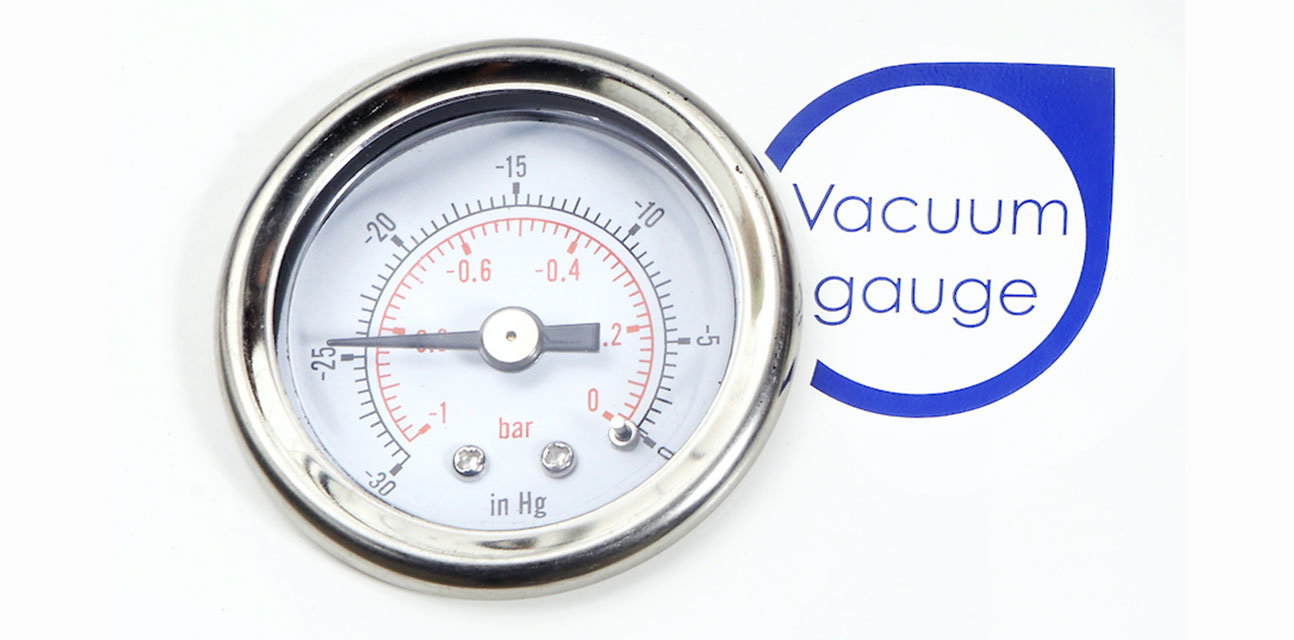

Vacuum Pressure Monitoring
Provides a clear visual display of vacuum pressure in both inHg and bar for consistent forming performance.
20-Program Memory Storage
Save and instantly recall up to 20 named presets for fast, consistent setup across different applications.
Pre-Stretch Feature
The Pre-Stretch feature pumps air into the heated sheet to create a bubble, reducing material thinning when forming deeper moulds.
Precision Vacuum Flow Control
Provides precise vacuum flow control for greater accuracy in demanding forming applications.

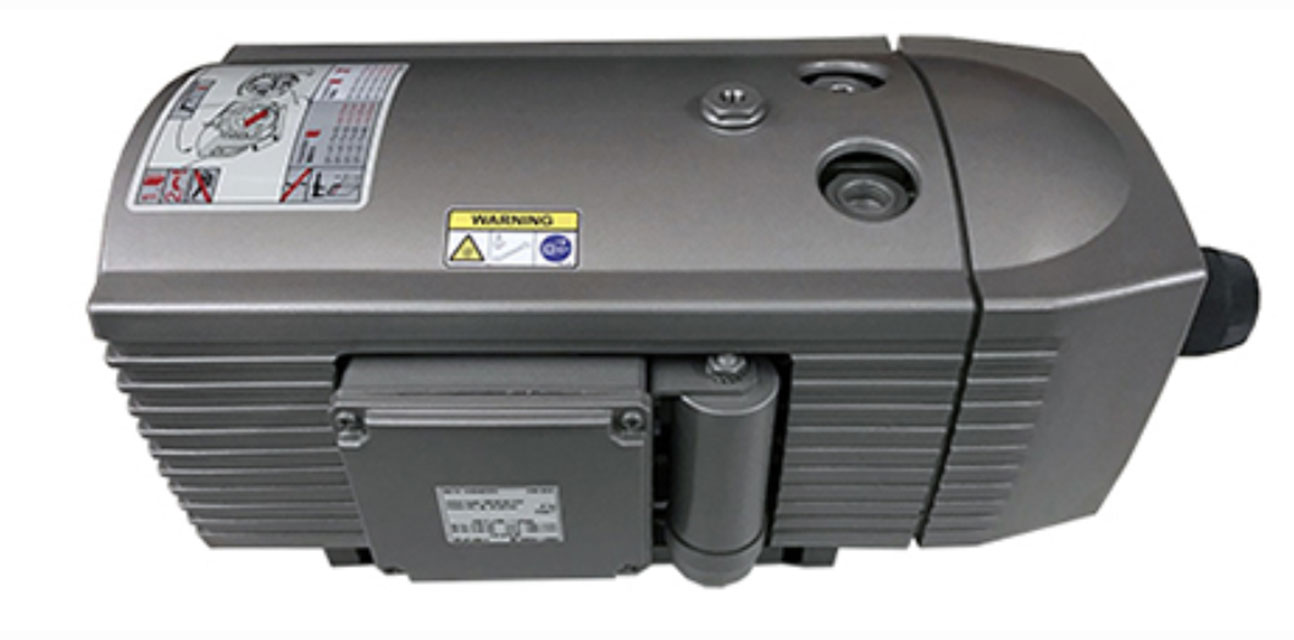

High-Performance Dry Rotary Vane Pump 16m3/h
Provides reliable, high-capacity vacuum power for intensive forming operations.
Integrated Vacuum and Mould Release
Once the formed part has cooled, air is forced between the mould and sheet to enable quick and easy part release.

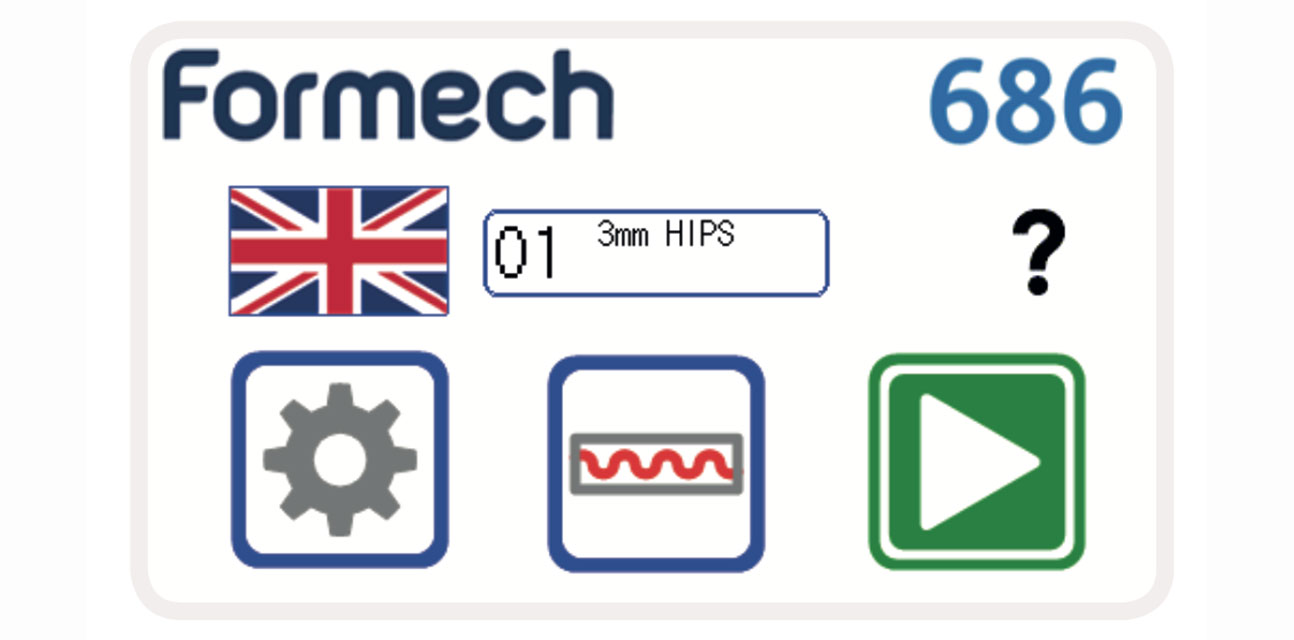

5'' Color PLC Touchscreen Control
A 5-inch color PLC touchscreen provides intuitive control, fast setup, and easy access to machine settings.

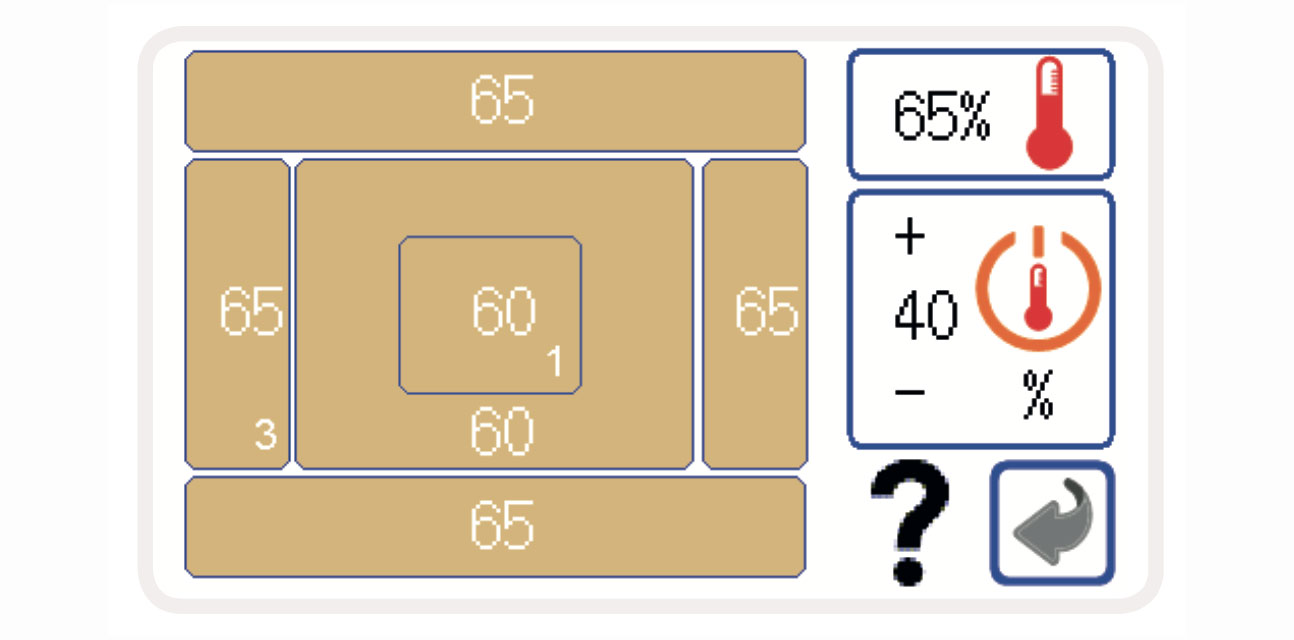

Six Independently Controlled Heating Zones
Delivers rapid heating with precise control for forming complex shapes and demanding materials.
Auto-Level Feature
Prevents material sag during heating by maintaining a consistent distance between the heater and sheet, while an audible alert indicates when the material is ready to form.
Pneumatic Table
The powered tool table lifts quickly and precisely for effortless handling of heavy tools, while twin controls help prevent accidental activation.
12-Month Product Warranty
Every Formech machine includes a standard 12-month manufacturer’s warranty for added peace of mind.
Energy-Efficient Quartz Heating System
Featuring energy-efficient quartz heaters, the system delivers rapid heating to reduce processing time and energy consumption.
Vacuum Pressure Monitoring
Provides a clear visual display of vacuum pressure in both inHg and bar for consistent forming performance.
20-Program Memory Storage
Save and instantly recall up to 20 named presets for fast, consistent setup across different applications.
Pre-Stretch Feature
The Pre-Stretch feature pumps air into the heated sheet to create a bubble, reducing material thinning when forming deeper moulds.
Precision Vacuum Flow Control
Provides precise vacuum flow control for greater accuracy in demanding forming applications.
High-Performance Dry Rotary Vane Pump 16m3/h
Provides reliable, high-capacity vacuum power for intensive forming operations.
Integrated Vacuum and Mould Release
Once the formed part has cooled, air is forced between the mould and sheet to enable quick and easy part release.
5'' Color PLC Touchscreen Control
A 5-inch color PLC touchscreen provides intuitive control, fast setup, and easy access to machine settings.
Six Independently Controlled Heating Zones
Delivers rapid heating with precise control for forming complex shapes and demanding materials.
Auto-Level Feature
Prevents material sag during heating by maintaining a consistent distance between the heater and sheet, while an audible alert indicates when the material is ready to form.
Pneumatic Table
The powered tool table lifts quickly and precisely for effortless handling of heavy tools, while twin controls help prevent accidental activation.
12-Month Product Warranty
Every Formech machine includes a standard 12-month manufacturer’s warranty for added peace of mind.
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| FORMING CAPACITY | ||
| Forming area | 646 x 620 mm | |
| Sheet size | 686 x 660 mm | |
| Max depth of draw | 320 mm | |
| Max material thickness | 6 mm | |
| DIMENSIONS | ||
| Machine width | 960 mm | |
| Machine height | 1165 mm | |
| Machine depth | 1932 mm | |
| Machine weight | 260 kg | |
| POWER | ||
| Power consumption (kW) | 8 | |
| 3 Phase power requirements | 380-415V / 32A | |
| AIR | ||
| Air requirements (PSI/bar) | 87 / 6 | |
| Operating interface | 4.3" Colour HMI | |
| Vacuum pump type | Dry rotary vane pump | |
| Pump flow (SCFM @ 0 in. / 60Hz) | 11 | |
| Pump flow m3 /h @ 0mbar / 50Hz | 16 | |
| Mould release method | External air supply | |
| HEATING | ||
| Heater type | Quartz | |
| Heating zones | 6 | |
