FORMECH 508DT VACUUM FORMER

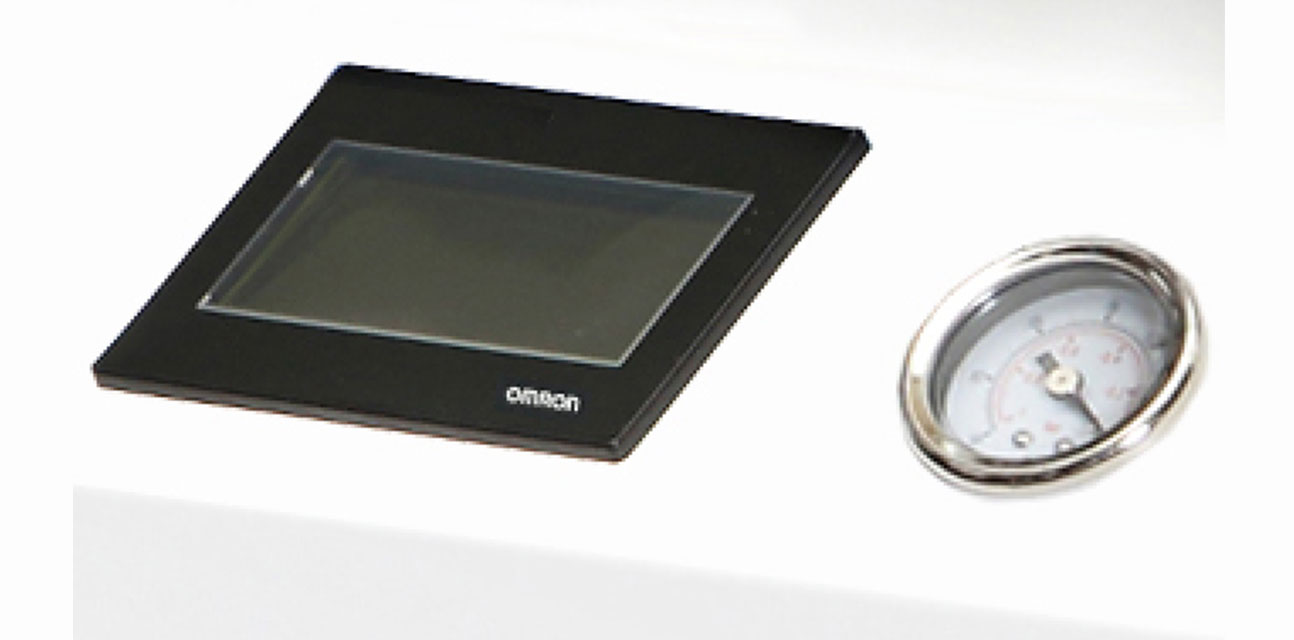

Featuring PLC touch screen control, Formech’s plug ‘n’ play 508DT is a user-friendly desktop machine with the power and capability to form demanding shapes and materials.

TECHNICAL SPECIFICATIONS

Forming Area(mm / inches) 482 x 432mm / 19 x 17"
Sheet Size(mm / inches) 508 x 457mm / 20 x 18"
Max Depth of Draw 185mm / 7.3"
Max Material Thickness *6mm / 0.25"
Heater Type Quartz

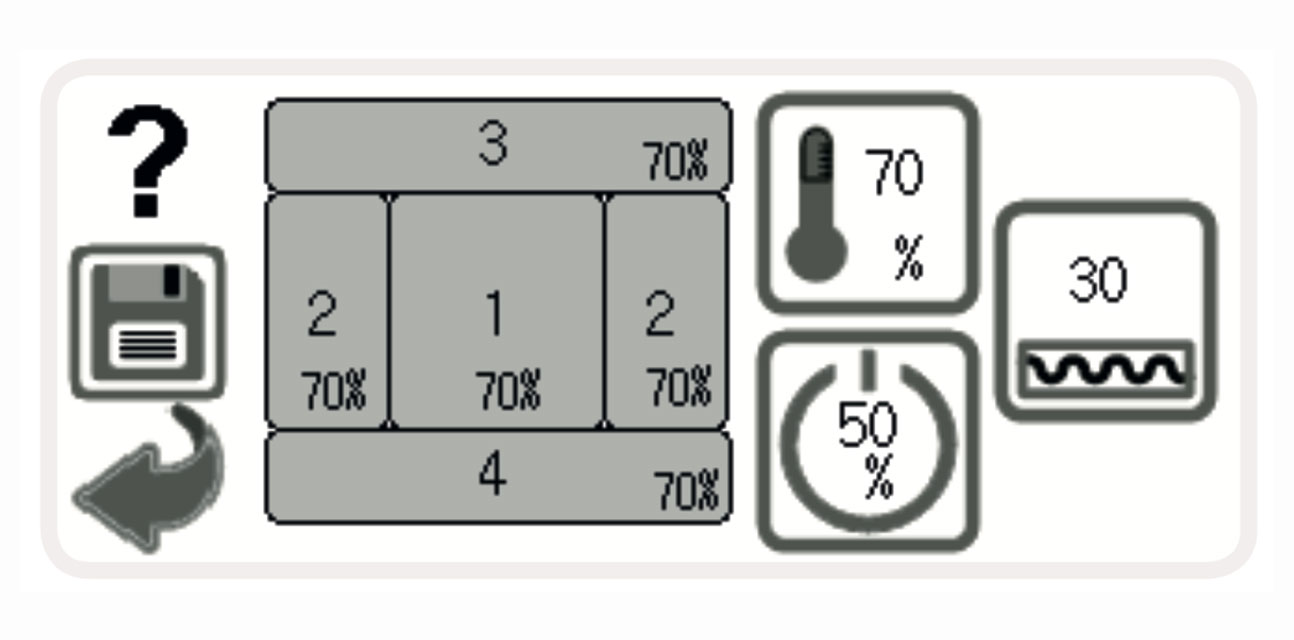

Heating Zones 4
Width 739mm / 29.1”
Height 535mm / 21.1"
Depth 1394mm / 54.9"
Weight 104kg / 229lbs
Single Phase Power Requirements 208-240V / 13A
Other Voltage(USA) n/a
Power Consumption 3.2kW
Vacuum Pump Type Diaphragm
Pump Flow (m3 /h @ 0mbar / 50Hz) Pump Flow (SCFM @ 0 in. / 60Hz) 3.0 (4.9)
Mould release method Pump exhaust
Air Requirements n/a
