Formech 2440 Vacuum Former

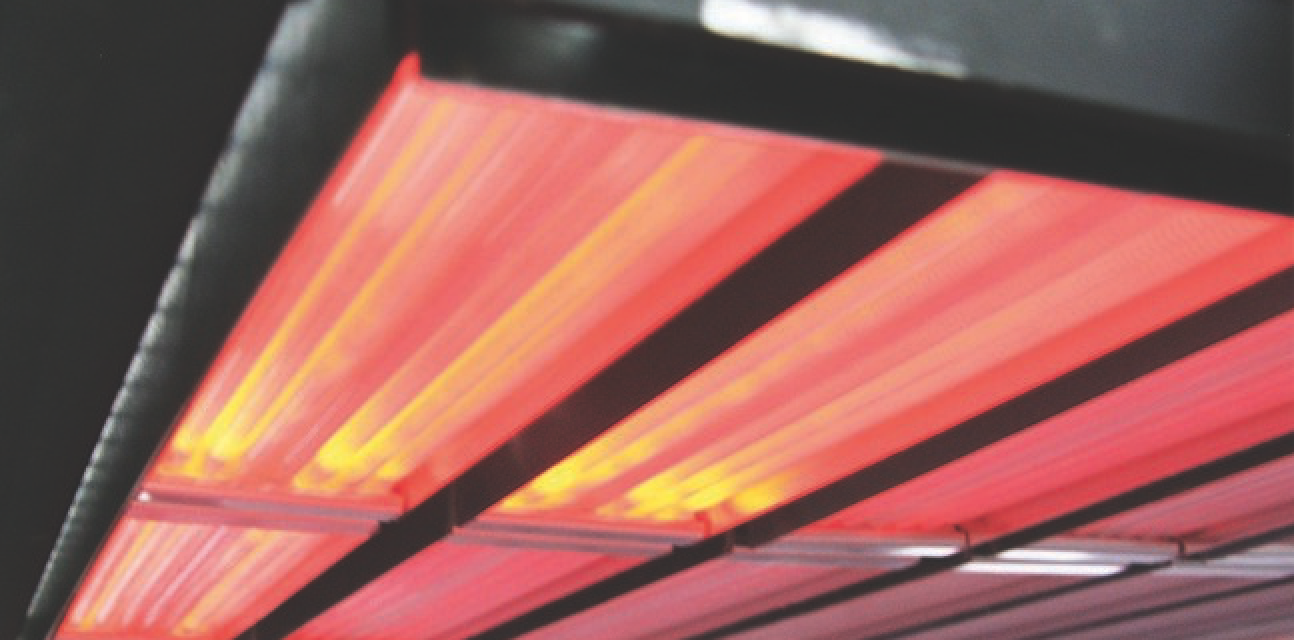

Energy-Efficient Quartz Heating System
Featuring energy-efficient quartz heaters, the system delivers rapid heating to reduce processing time and energy consumption.

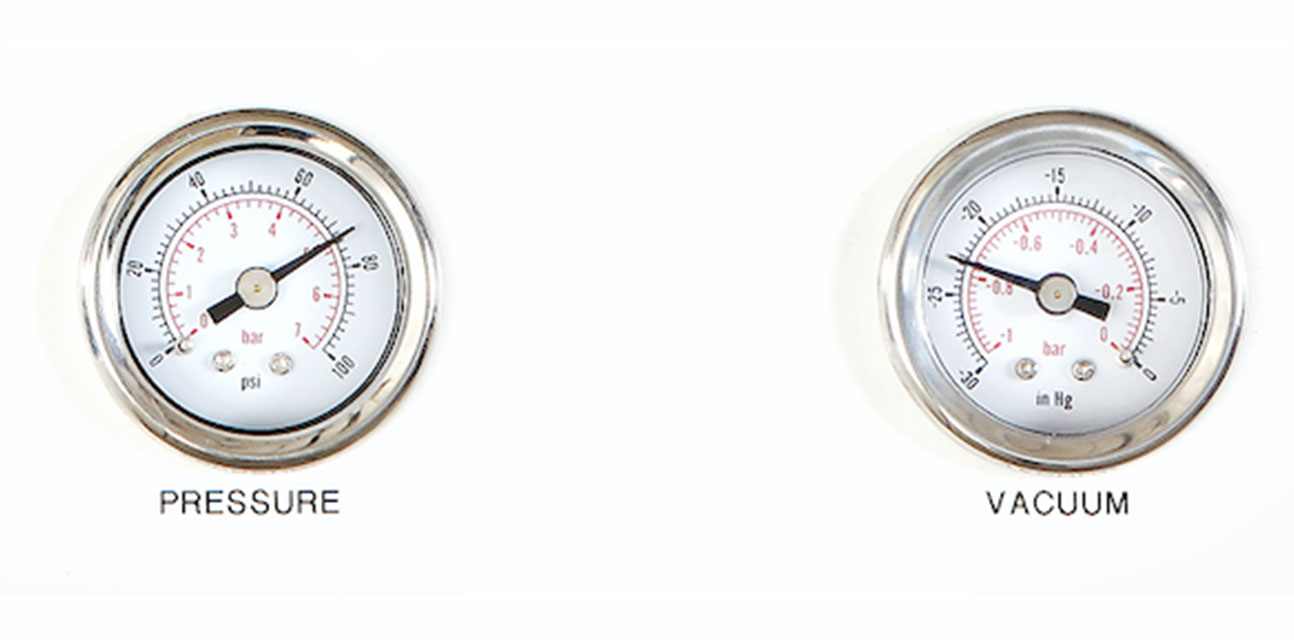

Vacuum Pressure Monitoring
Provides a clear visual display of vacuum pressure in both inHg and bar for consistent forming performance.

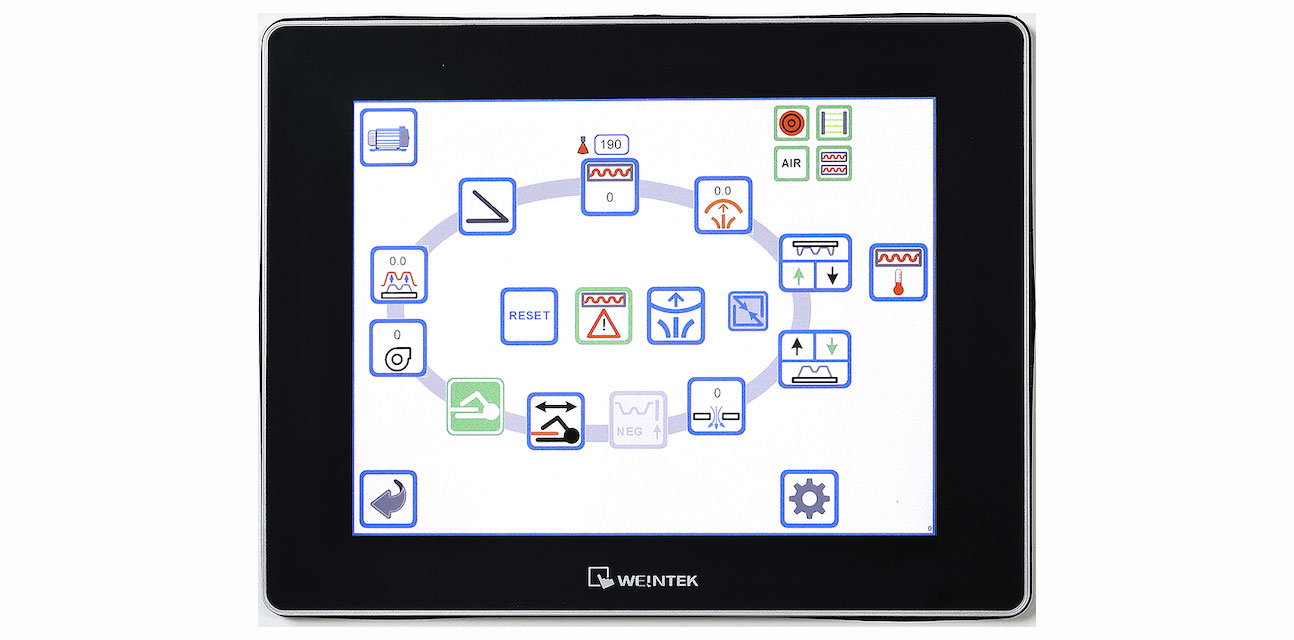

Formech Cycle View with 40-Program Memory
Monitor machine cycle status at a glance and adjust parameters in real time without interrupting the active cycle.
Pre-Stretch Feature
Pre-Stretch inflates the heated sheet to create a bubble, helping maintain uniform material thickness when forming deep tools.

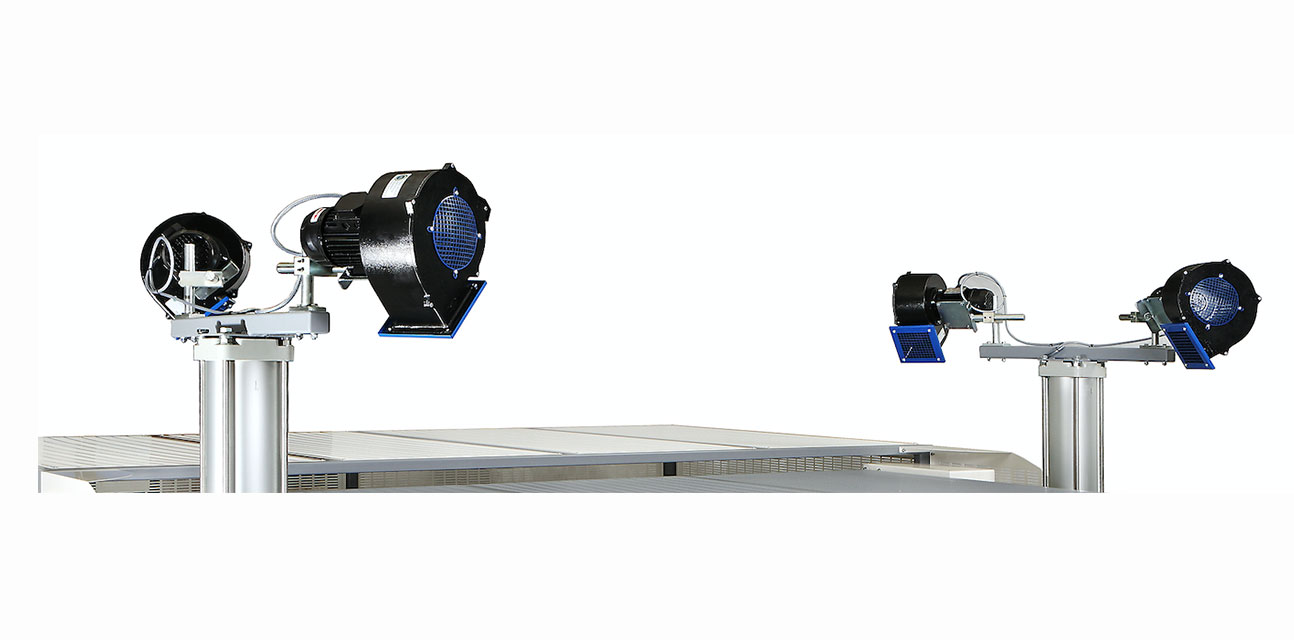

Four-Fan Cooling System
Cools formed materials quickly to shorten cycle times.
Precision Vacuum Flow Control
Provides precise vacuum flow control for greater accuracy in demanding forming applications.
Electric Heater Drive
The electric heater drive provides smooth, precise heater movement for efficient operation and consistent heating.

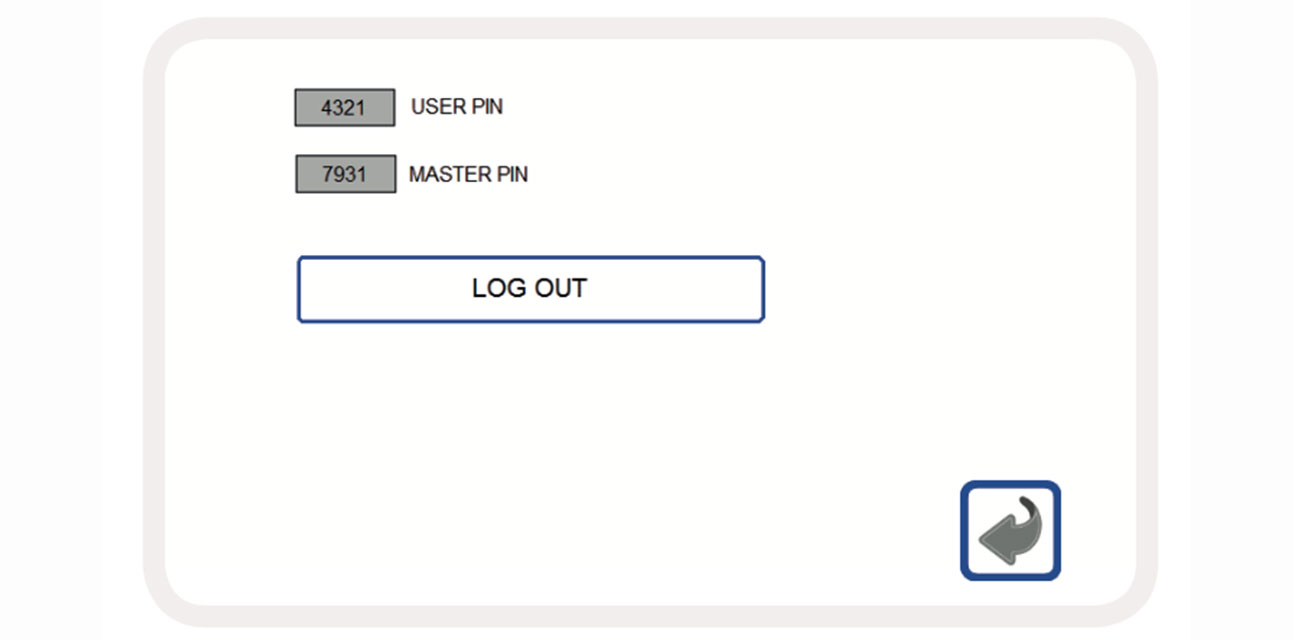

Multi-User PIN Access Control
Supervisors can assign different access levels to operators for secure, controlled machine operation.
70 m³/h Oil-Filled Rotary Vane Pump
Provides a 70 m³/h vacuum flow for rapid, consistent performance during high-demand operations.
Integrated Vacuum and Mould Release
Once the formed part has cooled, air is forced between the mould and sheet to enable quick and easy part release.

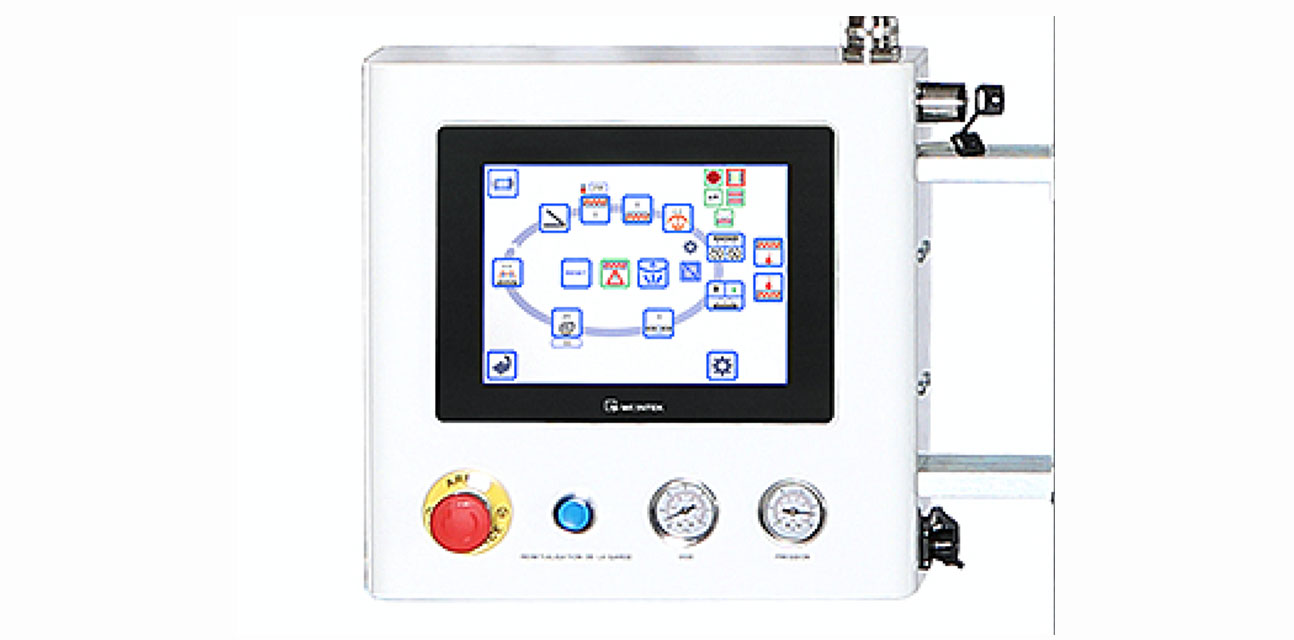

10'' High-Resolution PLC Touchscreen Control
The 10-inch high-resolution PLC touchscreen provides intuitive control, real-time monitoring, and quick access to machine settings.

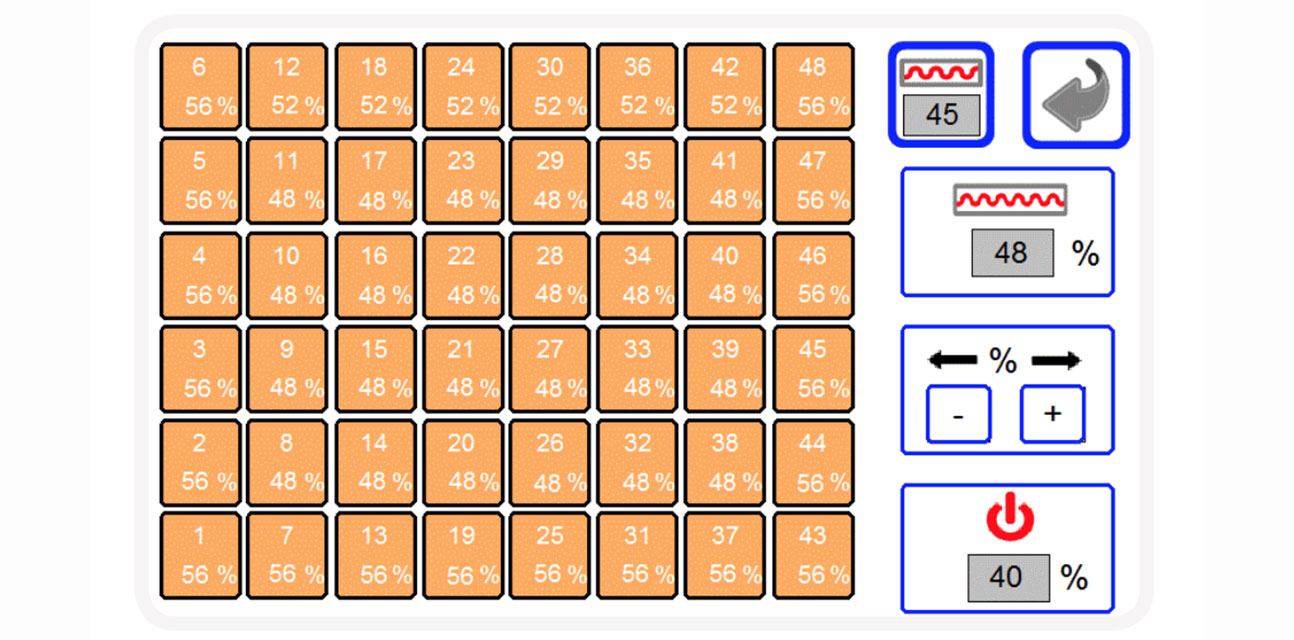

48 Independently Controlled Heating Zones
Delivers rapid heat response and precise control for forming challenging shapes and materials.
Auto-Level Feature
Prevents material sag during heating by maintaining a consistent distance between the heater and sheet, while an audible alert indicates when the material is ready to form.
Dual 200 L Vacuum Receiver Tanks
Dual 200-litre vacuum receiver tanks provide instant vacuum response for faster cycle times and high-definition forming.
Pneumatic Table
Lifts tool table quickly and precisely making effortless operation, even with heavy tools. Twin controls avoid accidental activation.

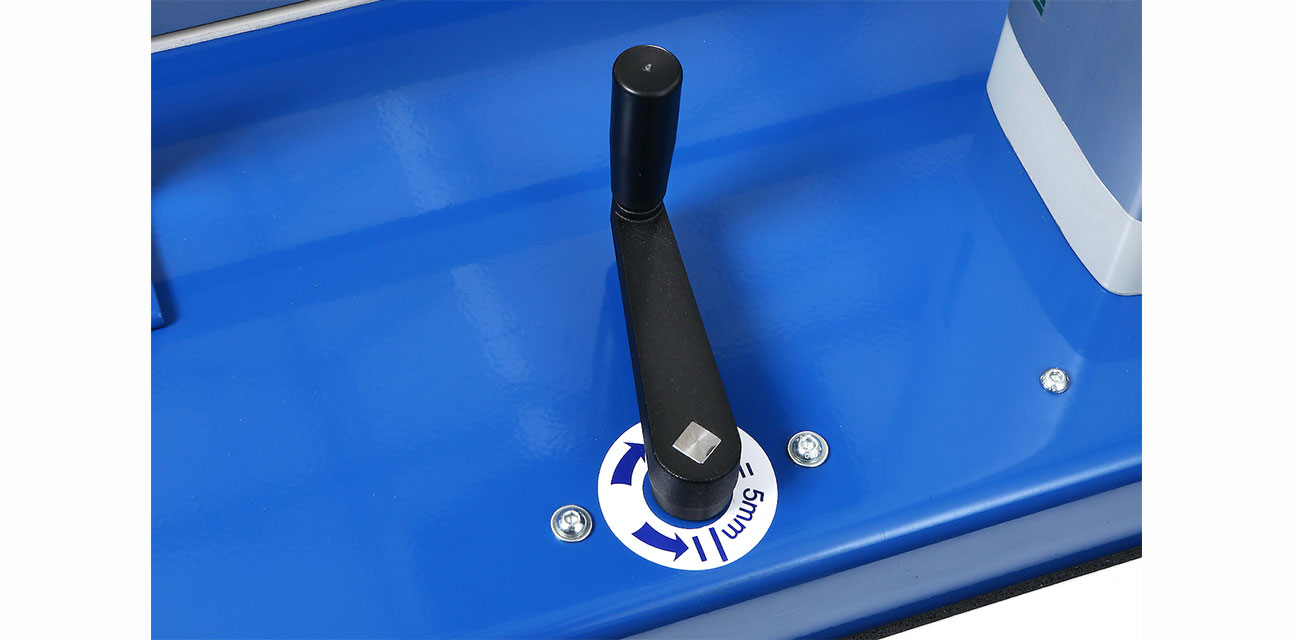

Adjustable Table Height
Adjustable table height reduces tool table travel for shallow tools, helping shorten cycle times.
Pneumatic Trigger Clamps
A pneumatically powered clamping system delivers strong, effortless clamping with precise control.
12-Month Product Warranty
Every Formech machine includes a standard 12-month manufacturer’s warranty for added peace of mind.
Energy-Efficient Quartz Heating System
Featuring energy-efficient quartz heaters, the system delivers rapid heating to reduce processing time and energy consumption.
Vacuum Pressure Monitoring
Provides a clear visual display of vacuum pressure in both inHg and bar for consistent forming performance.
Formech Cycle View with 40-Program Memory
Monitor machine cycle status at a glance and adjust parameters in real time without interrupting the active cycle.
Pre-Stretch Feature
Pre-Stretch inflates the heated sheet to create a bubble, helping maintain uniform material thickness when forming deep tools.
Four-Fan Cooling System
Cools formed materials quickly to shorten cycle times.
Precision Vacuum Flow Control
Provides precise vacuum flow control for greater accuracy in demanding forming applications.
Electric Heater Drive
The electric heater drive provides smooth, precise heater movement for efficient operation and consistent heating.
Multi-User PIN Access Control
Supervisors can assign different access levels to operators for secure, controlled machine operation.
70 m³/h Oil-Filled Rotary Vane Pump
Provides a 70 m³/h vacuum flow for rapid, consistent performance during high-demand operations.
Integrated Vacuum and Mould Release
Once the formed part has cooled, air is forced between the mould and sheet to enable quick and easy part release.
10'' High-Resolution PLC Touchscreen Control
The 10-inch high-resolution PLC touchscreen provides intuitive control, real-time monitoring, and quick access to machine settings.
48 Independently Controlled Heating Zones
Delivers rapid heat response and precise control for forming challenging shapes and materials.
Auto-Level Feature
Prevents material sag during heating by maintaining a consistent distance between the heater and sheet, while an audible alert indicates when the material is ready to form.
Dual 200 L Vacuum Receiver Tanks
Dual 200-litre vacuum receiver tanks provide instant vacuum response for faster cycle times and high-definition forming.
Pneumatic Table
Lifts tool table quickly and precisely making effortless operation, even with heavy tools. Twin controls avoid accidental activation.
Adjustable Table Height
Adjustable table height reduces tool table travel for shallow tools, helping shorten cycle times.
Pneumatic Trigger Clamps
A pneumatically powered clamping system delivers strong, effortless clamping with precise control.
12-Month Product Warranty
Every Formech machine includes a standard 12-month manufacturer’s warranty for added peace of mind.
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| FORMING CAPACITY | ||
| Forming area | 2380 x 1160 mm | |
| Sheet size | 2440 x 1220 mm | |
| Max depth of draw | 600 mm | |
| Max material thickness | 6 mm | |
| DIMENSIONS | ||
| Machine width | 3762 mm | |
| Machine height | 2200 mm | |
| Machine depth | 3952 mm | |
| Machine weight | 1800 kg | |
| POWER | ||
| Power consumption (kW) | 52 | |
| 3 Phase power requirements | 380-415V / 50Hz / 80A | |
| AIR | ||
| Air requirements (PSI/bar) | 87 / 6 | |
| Operating interface | 10" Colour HMI | |
| Vacuum pump type | Oil rotary vane pump | |
| Pump flow (SCFM @ 0 in. / 60Hz) | 49.4 | |
| Pump flow m3 /h @ 0mbar / 50Hz | 70 | |
| Mould release method | External air supply | |
| HEATING | ||
| Heater type | Quartz | |
| Heating zones | 48 | |
