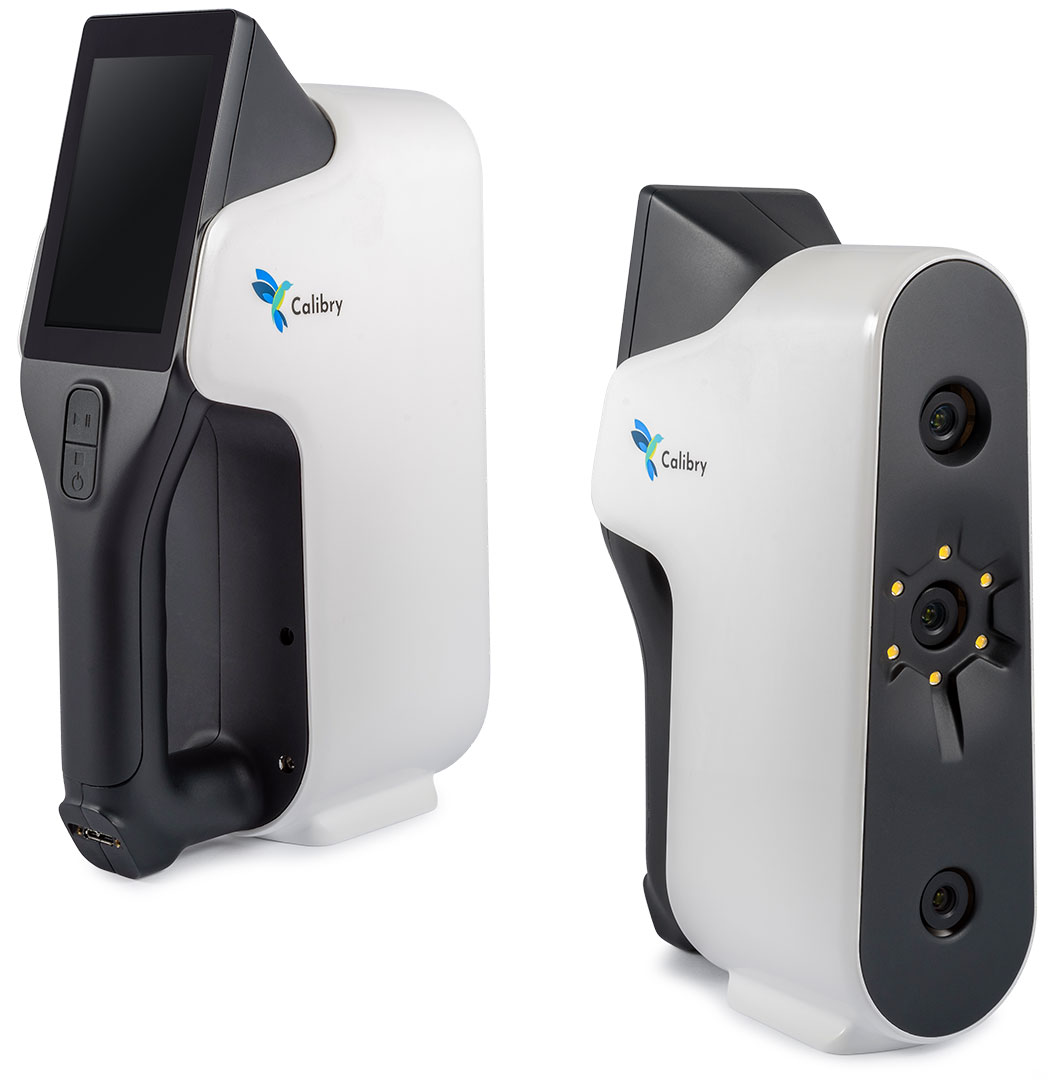

Calibry 3D Scanner
Built-in Touchscreen
Allows you to see what you scanned. No need for a computer screen.
Lightweight & Portable
Under 900 gr (1.5lbs). Take it with you anywhere you go.
Fast Capture
35 frames per second. What will you do with all that extra time? Get up to 3M points per second!
Scans what others can’t
Sharp edges, black & glossy objects, and fur & hair are no longer a problem.
Complementary & Powerful Software
Each device comes with unlimited licenses of our simple, yet powerful software.
Proprietary Camera
We developed our own camera for this device. This makes Calibry faster, cheaper and better.
3 tracking modes
Track by geometry, texture or markers. We made sure you’ll never lose your way.
Calibration
Calibrate or not. Up to you. We’ve provided the board for you just in case the mood hits you.
Almost unlimited-sized scan
Scan the car door or scan the whole car. Both the device and the software can take it!
TECHNICAL SPECIFICATIONS
| Accuracy | Up to 0.1mm |
| Accuracy over distance | Up to 0.1mm over 1m |
| Point resolution | Up to 0.6mm |
| Depth of view | 55-95 cm |
| Field of view | Min – 280 x 360 mm Max – 490 x 650 mm |
| Texture | Yes |
| Texture resolution | 2.3 MP |
| Light source | White LED |
| Frame rate | up to 35 fps |
| Data Acquisition speed | 3M points/sec |
| Multi-core processing | Yes |
| Weight | 900 gr |
| Touchscreen | Yes, 4 in |
| Software | Yes, included in the price |
| Operating temperature | +5/+40C |
| Dimensions, in mm | 165 x 85 x 274 |
