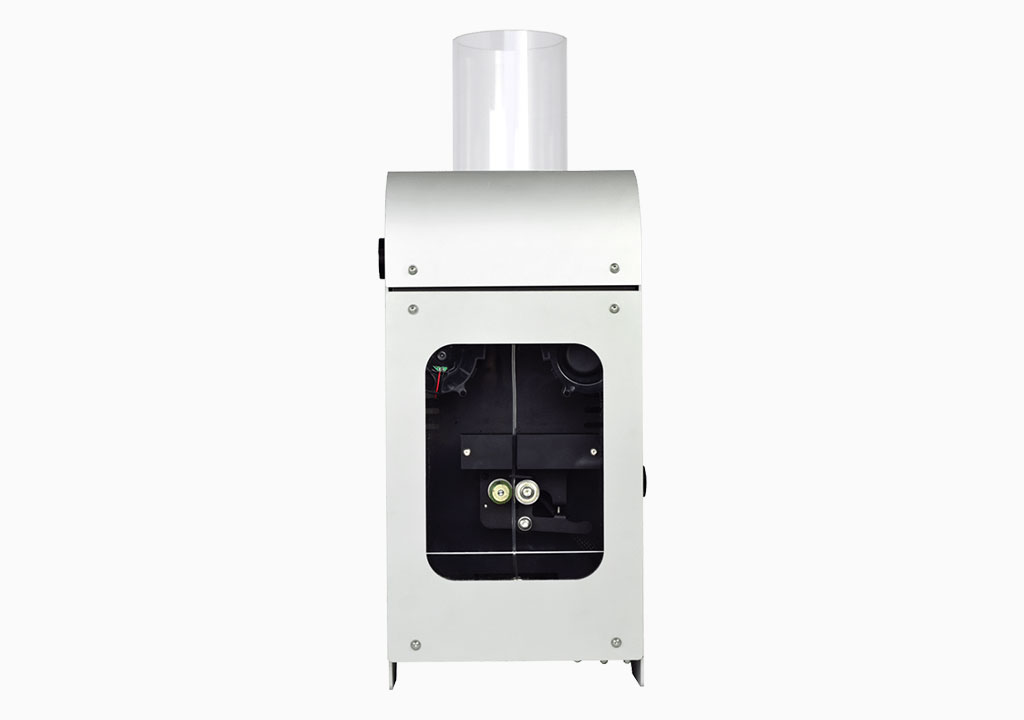

COMPOSER

Designed for mixing

The Composer Series targets material mixing and experimentation, allowing innovators to develop custom filament from a wide variety of polymers and additives. With a mixing screw, this delivers quality material compounding. The Composer Series is ideal for:

  • Research and development
  • Compounding
  • Experimenting

TECHNICAL SPECIFICATIONS

ColorBlack
Temperature Peek Point350°C (Composer 350) / 450°C (Composer 450)
Heating Zones4
Screw TypeMaterial Mixing Screw
DisplayDisplay with a single rotate-and-push control button
USB Connectivity🗸
Remote Controllability🗸
Sensor Dimensions1 Axis
Insulation MaterialFiberglass insulation with zip ties

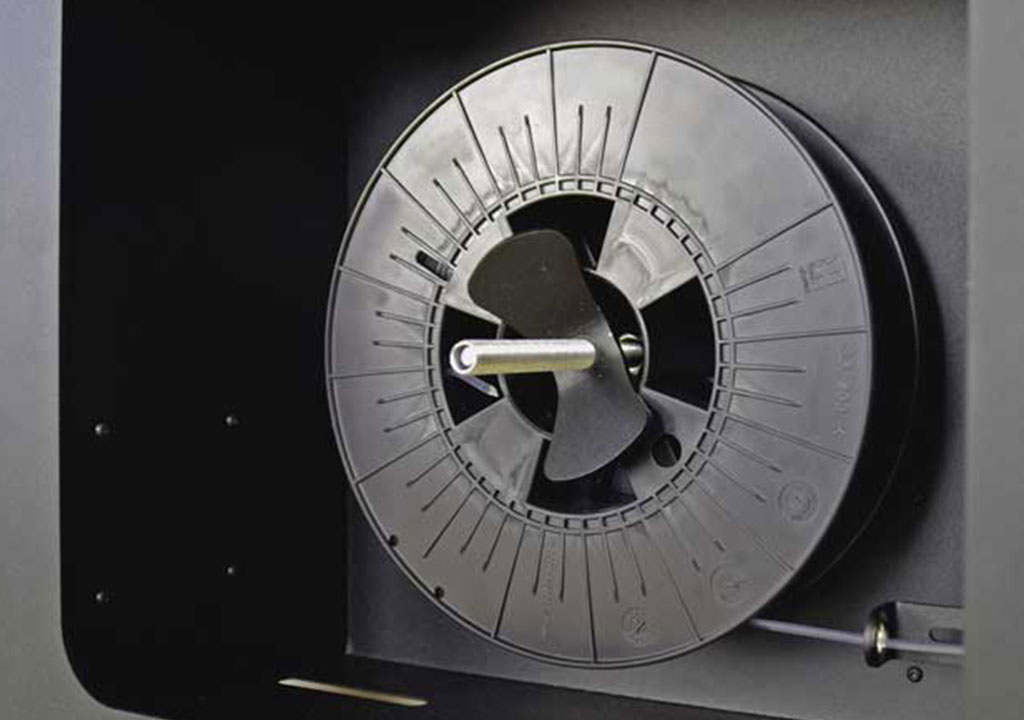

Spool SizeMedium

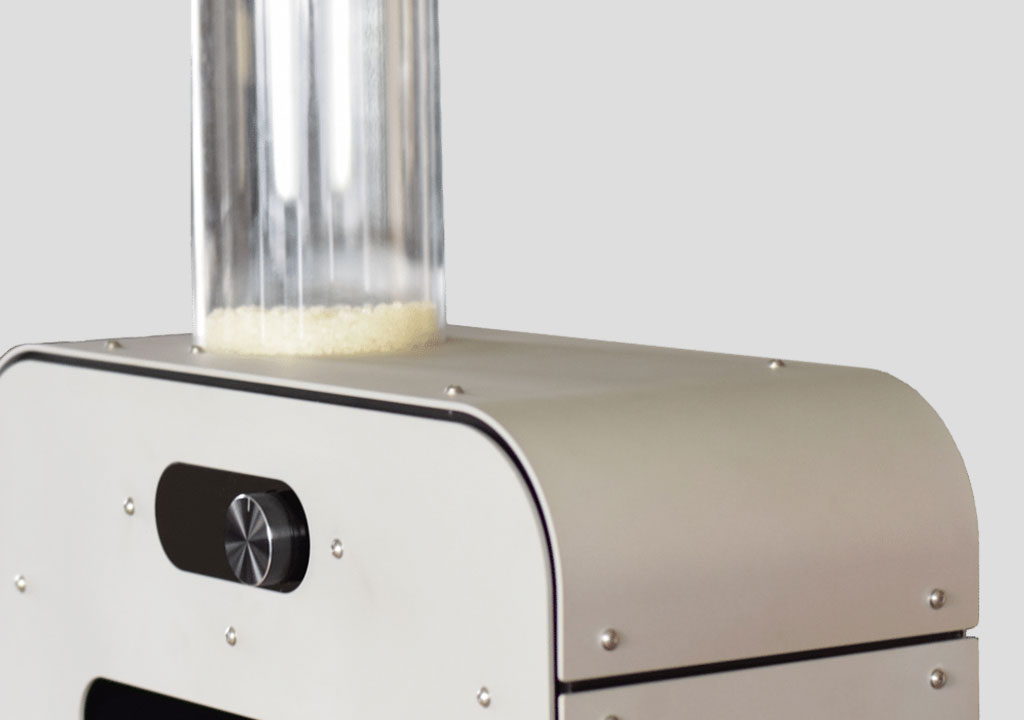

Hopper ExtensionFixed Hopper
Extruder MotorDC Motor
NozzleNot Interchangeable

PERFORMANCE

RPM Range2 - 15 RPM
Filament Diameter Range0.5 - 3 mm
Optical Sensor Accuracy43 microns

MATERIALS

Screw UsageFor Advanced Compounding
Screw length335 mm
Supported Materials350 series: Supports PLA, ABS, PS, PC, PETG, TPU, TPE, PPS, PVA, and various PAs.450 series: Includes all 350 materials plus PEEK, PEKK, PAEK, PEI, PSU, PES.

DIMENSIONS

Height448 mm
Width216 mm
Length506 mm
Weight22.6 kg
Average Consumption300 - 400 W
Maximum Consumption1300 W
Voltage110 – 230 V
Hertz50 - 60 Hz
Screw / Barrel AlloyHigh chromium and molybdenum steel alloy -Nitrided – 3 stage Compression
